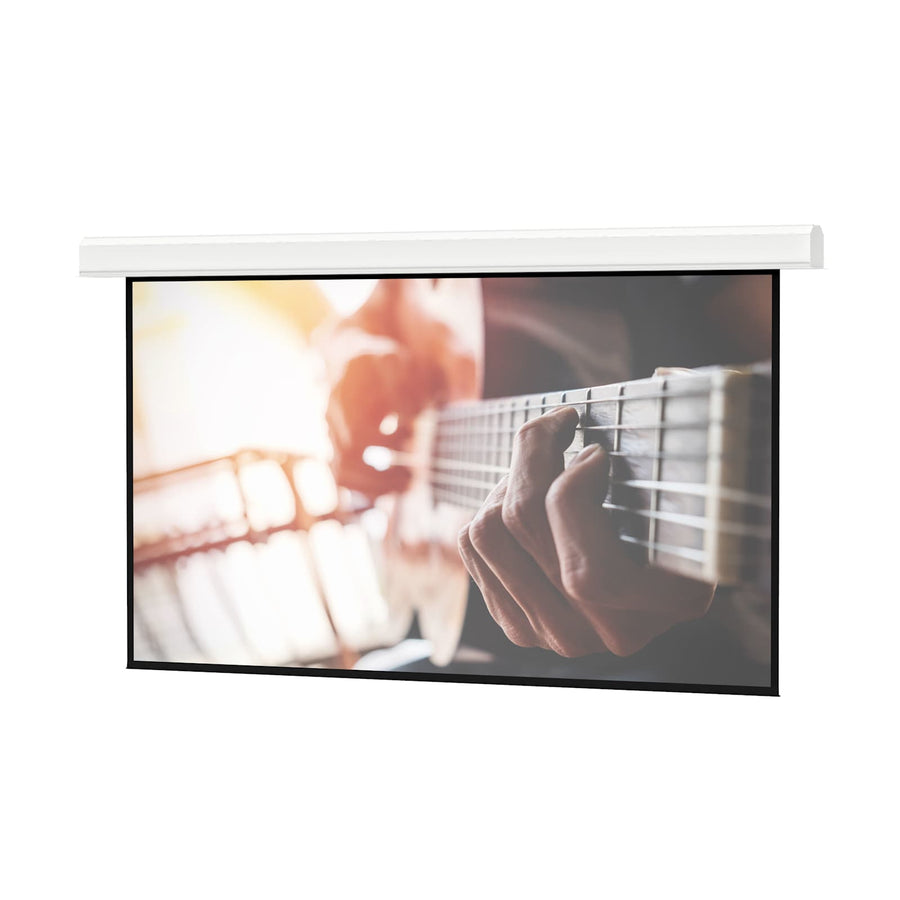

Da-Lite Advantage Series, 147.5" x 236" with Matte White - 14196F
Large venue ceiling recessed electric screen, 147.5" x 236" (278" diagonal), 16:10 wide format with matte white surface
The Da-Lite 14196F is a large venue electric screen from the Advantage Series, designed for ceiling recessed applications. This 16:10 wide format screen features a matte white non-tensioned surface and a standard 120V (60Hz) motor. Designed to conceal rough openings, the series includes ceiling trim to eliminate the need for additional finishing work. This specific SKU is a Surface, Roller, and Motor Assembly Only; the case and box must be ordered separately. It features an automatic closure door and a standard black drop. Installation is flexible via sliding mounting brackets, allowing the screen housing to be attached to the structure above a drop ceiling. The white powder-coated case provides a clean aesthetic, while the standard black backing helps retain projected brightness for front projection applications. This TAA compliant assembly is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 278 in (706.1 cm) |
| Screen Height | 147.5 in (374.7 cm) |
| Shipping Dimensions | 267" x 18" x 23" (678.2 x 45.7 x 58.4 cm) |
| Shipping Weight | 274 lbs (124.3 kg) |
| Size | 147.5" x 236" or 278" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236934973 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is included with the Da-Lite 14196F assembly?
This SKU is the Surface, Roller, and Motor Assembly Only. The screen case and box must be ordered separately for a complete installation.
Can I use this screen for front projection in a large venue?
Yes, the 14196F features a matte white non-tensioned surface and a standard black backing to help retain brightness during front projection.
Does this screen meet TAA requirements?
Yes, the 14196F is TAA compliant and is manufactured in the US.
How is the screen controlled?
It is equipped with a standard 120V (60Hz) motor and includes standard low voltage control (LVC).
Which documents are available for submittals?
Installers can access the Advantage Series Specification Sheet, CAD models, BIM models, and the Instruction Manual for technical submittals.
