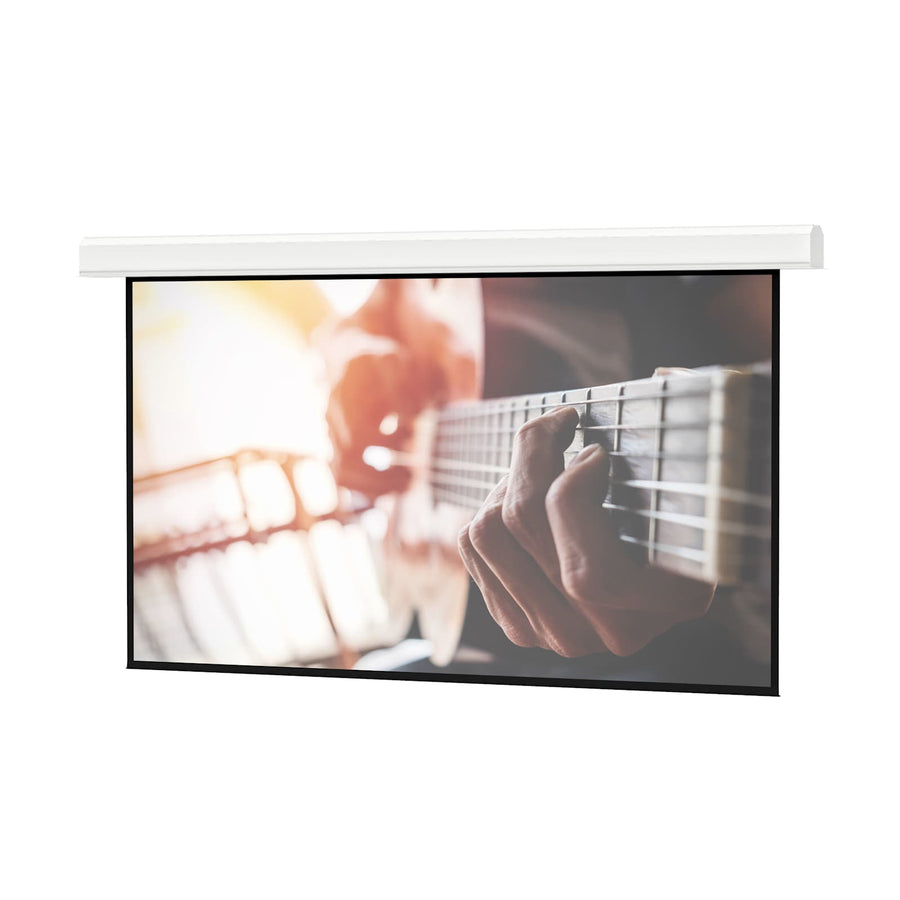

Da-Lite Advantage Series, 147.5" x 236" with Matte White - 14196B
Ceiling recessed electric projection screen with Matte White surface, automatic closure door, and TAA compliance
The Da-Lite 14196B is a large-format Advantage Series electric projection screen designed for ceiling recessed applications. This 278 in (706.1 cm) diagonal screen features a 147.5 in (374.7 cm) height and a wide 16:10 screen format. It is configured with a Matte White non-tensioned surface and a standard black drop to maintain projected brightness for front projection setups. This specific model is a Case/Box Only for Rough-In selection, designed for two-stage installation where the housing is installed during rough-in construction and the surface assembly is added during the finishing stage. The unit utilizes a standard 120V (60Hz) motor and includes an automatic closure door to protect the surface. Built for large venue environments, the white powder-coated case is UL Plenum rated, ensuring compliance in various architectural requirements. This TAA compliant product offers high-performance projection for professional installation environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 278 in (706.1 cm) |
| Screen Height | 147.5 in (374.7 cm) |
| Shipping Dimensions | 267" x 18" x 23" (678.2 x 45.7 x 58.4 cm) |
| Shipping Weight | 548 lbs (248.6 kg) |
| Size | 147.5" x 236" or 278" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236934966 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the installation process for the Da-Lite 14196B?
This is a Case/Box Only for Rough-In selection, allowing for a two-stage installation. The screen case is installed during the rough-in construction stage, while the surface assembly is installed later during the finishing stage.
Is this screen suitable for front projection in plenum spaces?
Yes, the 14196B features a UL Plenum rated case and includes a standard black backing to help retain projected brightness on the Matte White front projection surface.
What motor and control configuration does this model use?
The screen is equipped with a standard 120V (60Hz) motor and features standard low voltage control (LVC) with a Decora-style, three-button wall switch.
Does this model include a door to protect the screen surface?
Yes, the 14196B includes an automatic closure door to protect the Matte White surface when the screen is retracted.
Which documents are available for submittals for the 14196B?
Installers can access the Advantage Series Specification Sheet, Product Information Sheet, and Instruction Manual, as well as BIM and CAD models for design integration.
