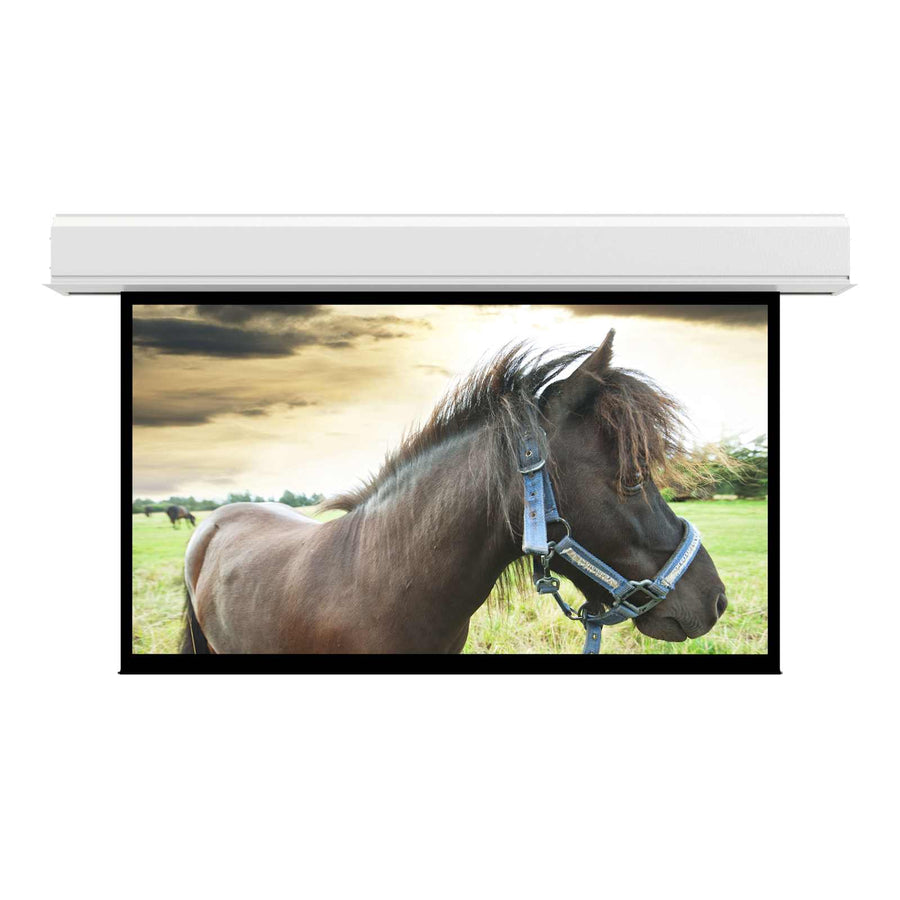

Da-Lite Advantage Series, 146" x 260" with Matte White - 14199FL
Large venue ceiling recessed electric screen, 146" x 260" (298" diagonal) with Matte White non-tensioned surface
The Da-Lite 14199FL is a large venue, ceiling recessed electric screen designed for professional projection environments. This specific SKU is for the Surface, Roller, and Motor Assembly only; the enclosure/case must be ordered separately. Featuring a Matte White non-tensioned surface, it is built for front projection applications and follows the 16:9 HDTV format. This series is designed to be installed with the ceiling trim in place, which conceals the rough opening and eliminates the need for additional finishing trim once installed. This model utilizes a standard 120V (60Hz) motor and includes standard low voltage control. For improved visual impact, the screen features a standard black drop and a black backing to maintain projected brightness. The assembly includes a slot-style closure door and is suitable for large venue installations where a high-quality, seamless projection surface is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 298 in (756.9 cm) |
| Screen Height | 146 in (370.8 cm) |
| Size | 146" x 260" or 298" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
| Drop Type | Standard Black Drop |
| Motor | Standard 120V (60Hz) |
All other specifications 7
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
Resources
Questions about this part
What is included with the 14199FL and what do I need to order separately?
This SKU is for the Surface, Roller, and Motor Assembly only. You must order the case/box separately to complete the installation.
Can this screen be used for front projection?
Yes, this is a front projection screen featuring a Matte White non-tensioned surface and a standard black backing to retain brightness.
What electrical requirements are needed for the motor?
This model uses a standard 120V (60Hz) motor and features built-in standard low voltage control.
Is the 14199FL suitable for plenum-rated environments?
Yes, the case is UL Plenum rated for use in such environments.
How does the installation process work for the Advantage Series?
The two-stage installation allows you to install the screen case during the rough-in construction stage and the surface assembly during the finishing stage.
