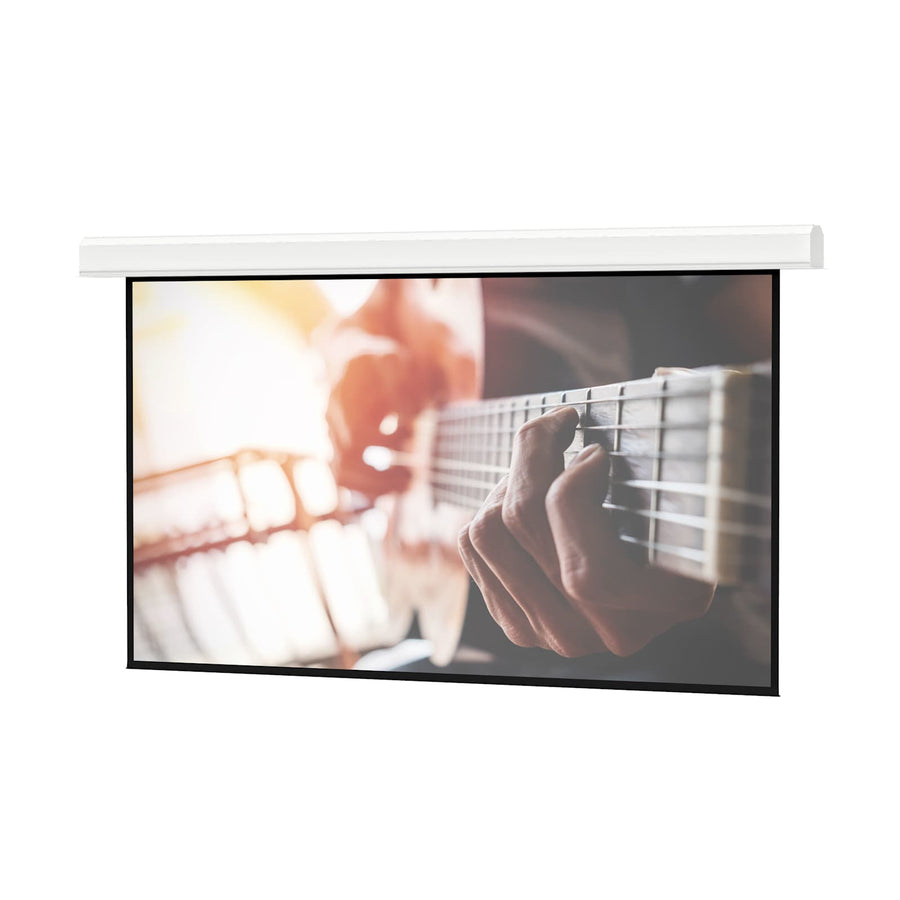

Da-Lite Advantage Series, 146" x 260" with Matte White - 14193EB
Ceiling recessed electric projection screen with 146" x 260" Matte White surface and 220V (50Hz) motor
The Da-Lite 14193EB is a large venue, ceiling recessed electric projection screen designed for high-impact environments. This 146" x 260" screen features a 298 in (756.9 cm) diagonal and a Matte White (non-tensioned) surface optimized for front projection. Specifically configured for export markets, it utilizes a 220V (50Hz) motor. The Advantage Series is engineered to conceal the rough opening with built-in ceiling trim, eliminating the need for additional finishing work once the unit is installed. This particular SKU is provided as the Case/Box Only for Rough-In, allowing for a two-stage installation process: the screen case can be installed during the initial rough-in construction, while the screen surface assembly is added during the final finishing stage. The unit features an automatic closure door and a standard black drop for a clean, professional appearance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 298 in (756.9 cm) |
| Screen Height | 146 in (370.8 cm) |
| Size | 146" x 260" or 298" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
| Motor | 220V (50Hz) for Export |
All other specifications 7
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
Resources
Questions about this part
Will this Da-Lite 14193EB screen fit my ceiling installation?
This model is designed for ceiling recessed applications. It utilizes a two-stage installation method where the Case/Box Only is installed during rough-in, and the surface assembly is installed during the finishing stage to conceal the opening.
What type of power supply does the 14193EB use?
The 14193EB is configured with a 220V (50Hz) motor intended for export use, rather than standard US voltage.
What is the difference between the screen surface and the housing?
This SKU is the Case/Box Only for Rough-In, meaning it is the housing component required for the rough-in stage; the screen surface assembly is handled during the final finishing stage.
Can I use this for front projection?
Yes, the 14193EB is specifically designed for front projection using a Matte White non-tensioned surface.
Which documents are available for submittals?
Installers can access the Advantage Series Specification Sheet, Installation and Connections manual, and BIM/CAD models via the Resources tab for technical submittals.
