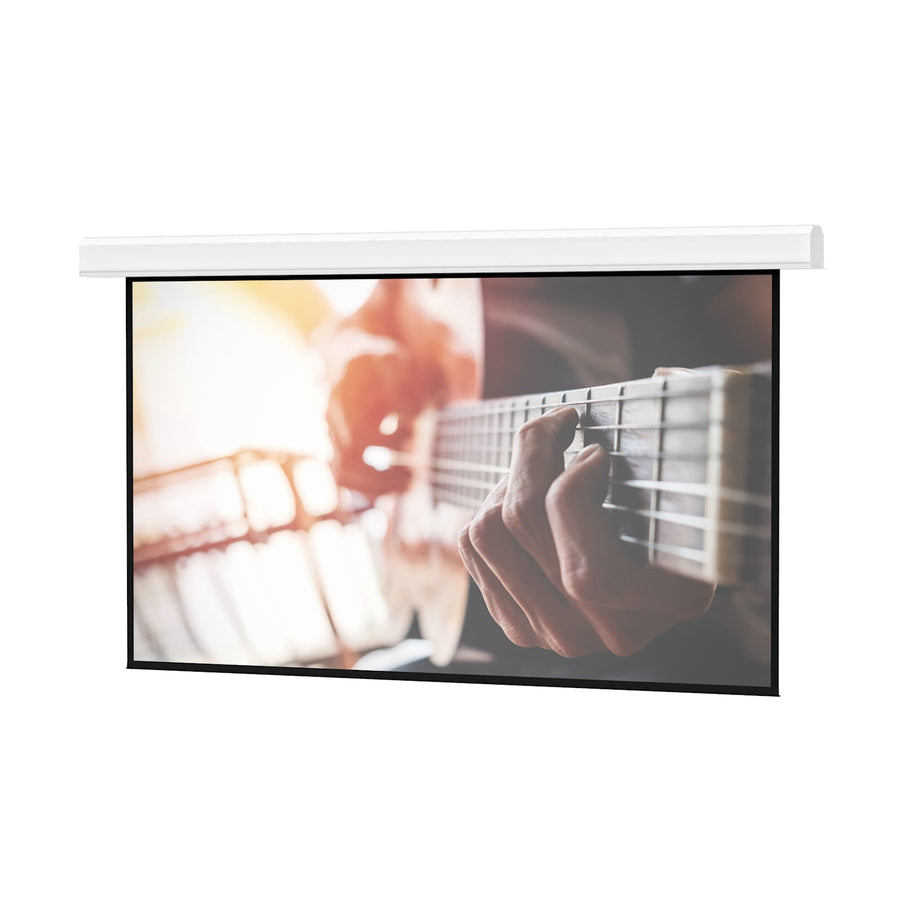

Da-Lite Advantage Series, 146" x 260" with Matte White - 14193E
Large venue ceiling recessed electric screen, 146" x 260" with Matte White surface, 298" diagonal, TAA compliant
The Da-Lite 14193E is an Advantage Series ceiling recessed electric screen designed for large venue environments. This 146" x 260" screen features a Matte White non-tensioned surface in a 16:9 HDTV format, providing a 298" diagonal viewing area for front projection applications. The unit includes an automatic closure door and standard black drop, which works with the standard black backing to retain projected brightness on the front surface. This model is equipped with a 220V (50Hz) motor intended for export markets and features standard low voltage control. For installation, this series offers a two-stage process: the white powder-coated case can be installed during the rough-in construction stage, while the screen surface assembly is installed during the finishing stage. The inclusion of an automatic closure door and the Advantage Series' recessed design helps conceal the rough opening, eliminating the need for additional trim work after installation. This TAA compliant screen is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 298 in (756.9 cm) |
| Screen Height | 146 in (370.8 cm) |
| Shipping Dimensions | 281" x 18" x 23" (713.7 x 45.7 x 58.4 cm) |
| Shipping Weight | 958 lbs (434.5 kg) |
| Size | 146" x 260" or 298" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068758568 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this screen fit a standard 16:9 aspect ratio setup?
Yes, the 14193E is specifically configured for HDTV (16:9) formats with a 298 in (756.9 cm) diagonal.
What is required for the installation of the Advantage Series case?
The white powder-coated case can be installed during the rough-in construction stage, allowing the surface assembly to be completed during the finishing stage.
Is this screen suitable for TAA compliant projects?
Yes, the 14193E is TAA compliant and is manufactured in the US.
What motor voltage does this specific SKU use?
This SKU is equipped with a 220V (50Hz) motor designed for export use.
Can I add a locking mechanism to the wall switch?
Yes, you can use the Da-Lite Locking Switch Cover Plate (SKU 98837) with the control system.
