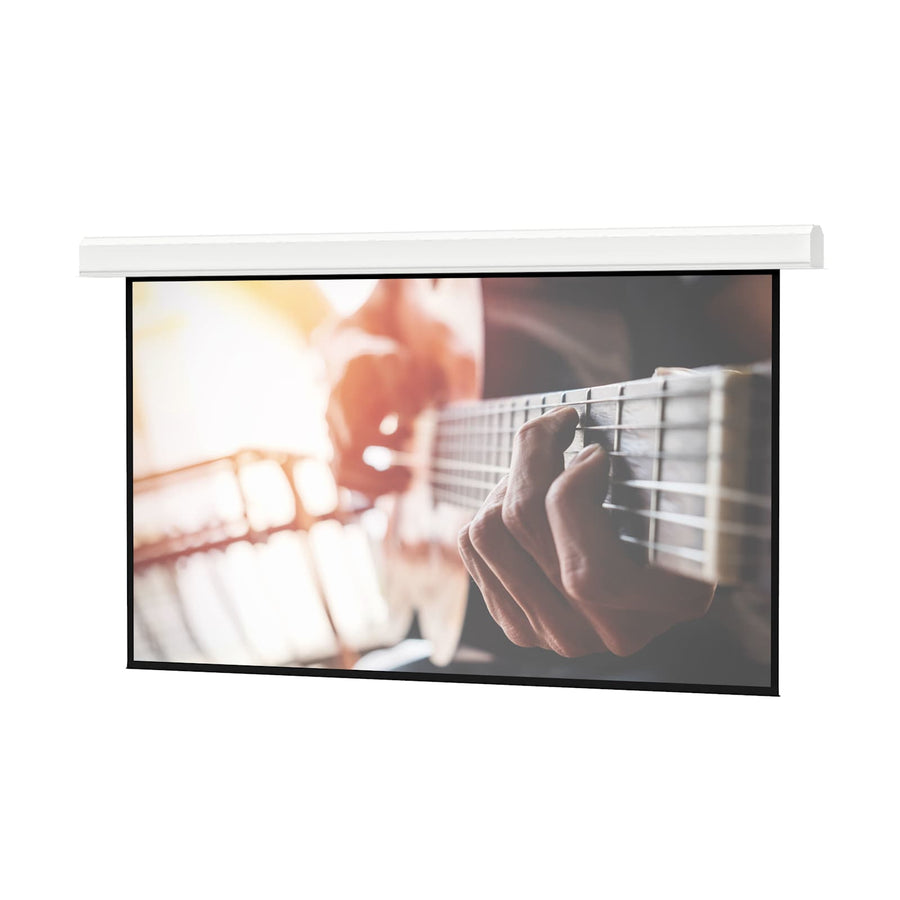

Da-Lite Advantage Series, 141" x 188" with Matte White - 36856F
Ceiling recessed electric screen with 141" x 188" Matte White surface and automatic closure door
The Da-Lite 36856F is a large venue electric projection screen designed for ceiling recessed installation. This 240 in (609.6 cm) diagonal screen features a 141 in (358.1 cm) height and a 4:3 video screen format. The assembly includes the surface, roller, and motor, but the case and box must be ordered separately. Designed for front projection, the non-tensioned Matte White surface is paired with a standard black drop to maintain projected brightness. This TAA compliant unit utilizes a standard 120V (60Hz) motor and features standard low voltage control for flexible operation. The automatic closure door helps protect the surface when not in use. This specific SKU is part of the Advantage Series, which offers a two-stage installation process where the housing can be installed during rough-in and the surface assembly can be added during the finishing stage.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 240 in (609.6 cm) |
| Screen Height | 141 in (358.1 cm) |
| Shipping Weight | 158 lbs (71.7 kg) |
| Size | 141" x 188" or 240" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is included in this part number?
The 36856F includes the surface, roller, and motor assembly only. The screen case and box are sold separately.
How do I control the movement of this screen?
This model features standard low voltage control. It is compatible with the Da-Lite 40975 Low Voltage Wall Switch.
Is this screen suitable for recessed ceiling installations?
Yes, the Advantage Series is designed for ceiling recessed applications. It uses sliding installation brackets to allow mounting flexibility to the structure above the drop ceiling.
Will this screen fit a 4:3 aspect ratio projection setup?
Yes, this specific SKU is configured with a 4:3 video format and a 240 in (609.6 cm) diagonal.
What documentation is available for submittals?
The Advantage Series specification sheet and product information sheet are available for technical submittals.
