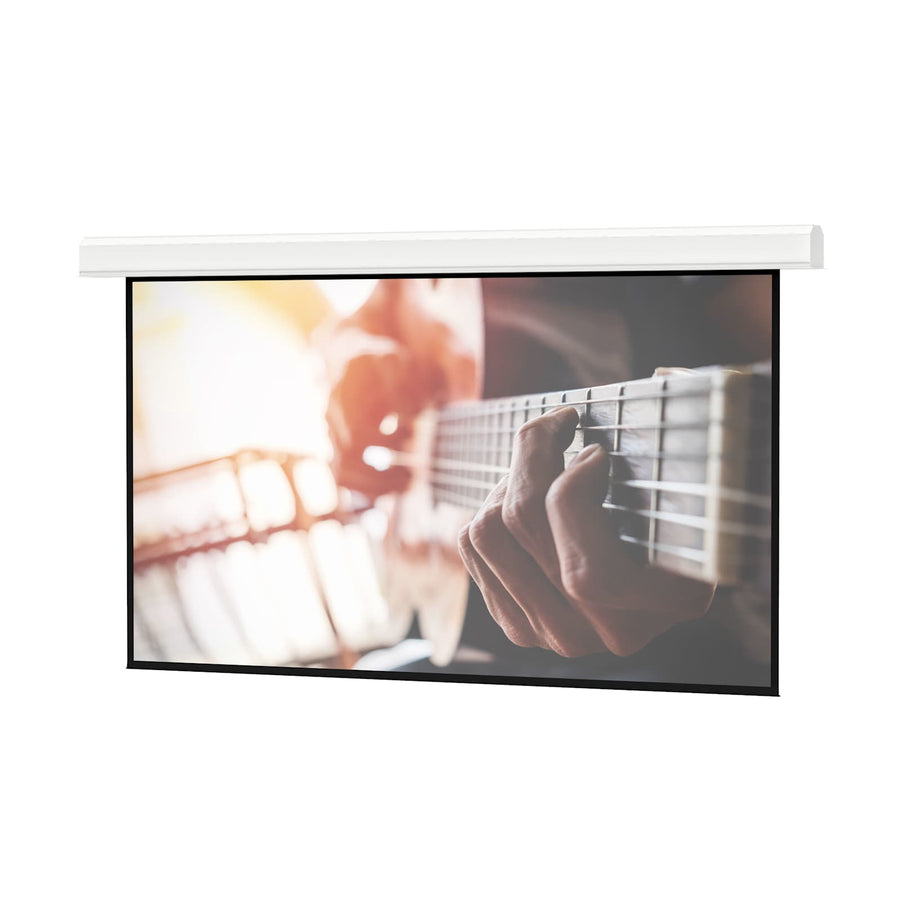

Da-Lite Advantage Series, 141" x 188" with Matte White - 36856B
Ceiling recessed electric projection screen, 141" x 188" (240" diagonal), featuring Matte White surface and automatic closure door
The Da-Lite 36856B is a large venue, ceiling recessed electric screen designed for professional front projection applications. This 240 in (609.6 cm) diagonal screen features a 141 in (358.1 cm) height and a 4:3 video format. The unit is equipped with a standard 120V (60Hz) motor and includes built-in standard low voltage control for flexible operation. For improved aesthetics and protection, this model features an automatic closure door and a standard black drop. The screen surface is finished in Matte White (non-tensioned), and a standard black backing is utilized to help retain projected brightness. This TAA compliant screen is manufactured in the US. The Advantage Series is designed for two-stage installation, allowing the case to be installed during rough-in construction while the screen surface assembly is completed during the finishing stage. The white powder-coated case is UL Plenum rated.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 240 in (609.6 cm) |
| Screen Height | 141 in (358.1 cm) |
| Shipping Weight | 578 lbs (262.2 kg) |
| Size | 141" x 188" or 240" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the installation process for the Da-Lite 36856B?
This series supports a two-stage installation. You can install the case during the rough-in construction stage and then attach the screen surface assembly during the finishing stage using sliding installation brackets.
Does this screen require additional trim work after installation?
No, the Advantage Series is designed with ceiling trim in place to conceal the rough opening, which eliminates the need for additional trim work once the screen is installed.
What control options are available for this electric screen?
The 36856B includes standard low voltage control. For additional functionality, you can use accessories like the Da-Lite 40975 Low Voltage Wall Switch or the 98837 Locking Switch Cover Plate.
What type of projection is this screen designed for?
This is a front projection screen featuring a Matte White (non-tensioned) surface and a standard black drop to maintain image brightness.
Is this screen TAA compliant?
Yes, the Da-Lite 36856B is TAA compliant and was manufactured in the US.
