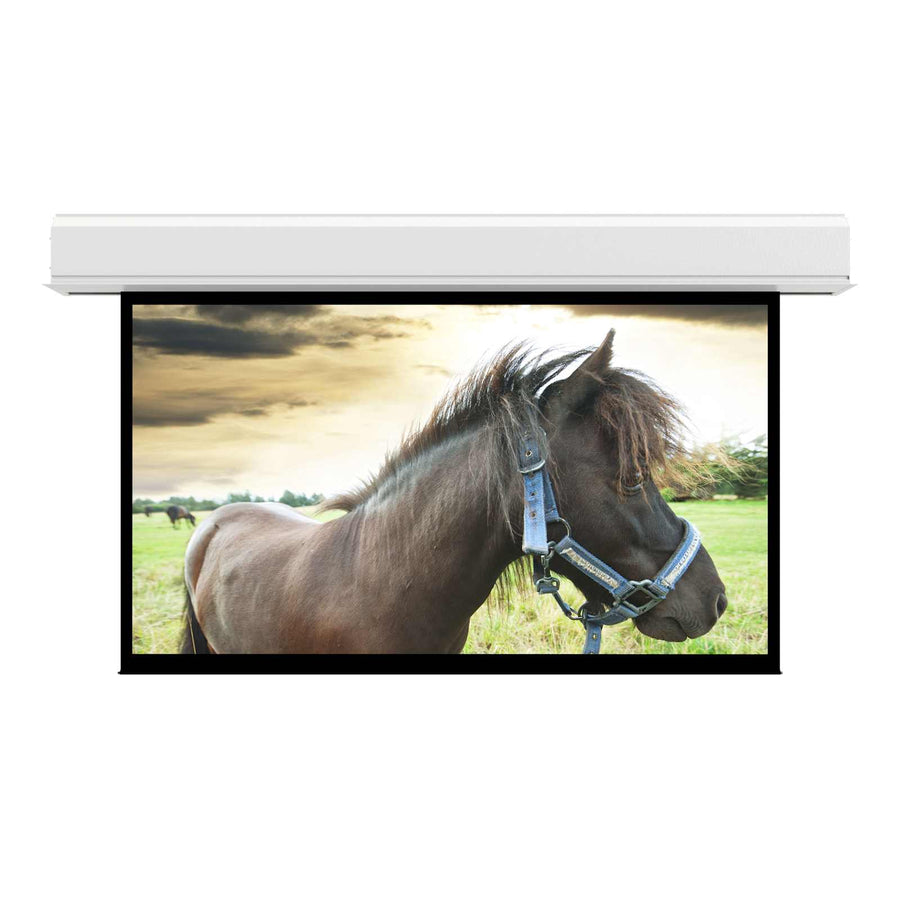

Da-Lite Advantage Series, 133" x 236" with Matte White - 36982EFL
Large venue ceiling recessed electric screen, 133" x 236" (271" diagonal) with Matte White surface and 220V motor
The Da-Lite 36982EFL is an Advantage Series ceiling recessed electric screen designed for large venue front projection applications. This specific configuration features a 133" x 236" (271" diagonal) screen size with a Matte White non-tensioned surface in a 16:9 HDTV format. Built for international use, it is equipped with a 220V (50Hz) motor for export. This product is the surface, roller, and motor assembly only; the case or box must be ordered separately. The unit features a standard black drop and a slot-style closure door. This TAA compliant screen utilizes a standard low voltage control system for integrated operation. The assembly is designed for two-stage installation, allowing the case to be installed during the rough-in construction phase and the screen surface assembly to be completed during the finishing stage. The white powder-coated case is UL Plenum rated for safe installation in plenum environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 271 in (688.3 cm) |
| Screen Height | 133 in (337.8 cm) |
| Shipping Dimensions | 250" x 12" x 12" (635 x 30.5 x 30.5 cm) |
| Shipping Weight | 467 lbs (211.8 kg) |
| Size | 133" x 236" or 271" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068524453 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is included with the Da-Lite 36982EFL?
This SKU is the surface, roller, and motor assembly only. The screen case or box must be ordered separately to complete the installation.
What electrical requirements are needed for this screen?
This model features a 220V (50Hz) motor specifically intended for export use, featuring standard low voltage control.
Is the 36982EFL suitable for plenum airspaces?
Yes, the white powder-coated case for this series is UL Plenum rated.
What is the screen's aspect ratio and surface type?
The 36982EFL features a 16:9 HDTV aspect ratio with a Matte White non-tensioned surface.
Does this screen meet TAA requirements?
Yes, the 36982EFL is TAA compliant and is of US origin.
