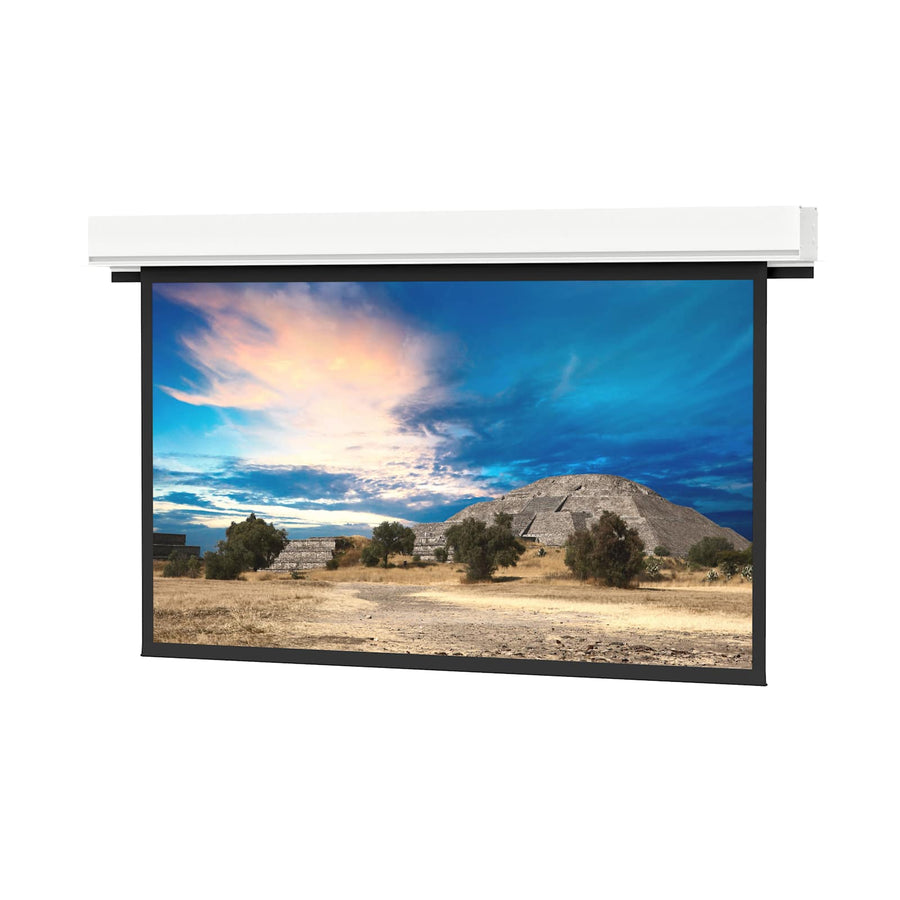

Da-Lite Advantage Series, 108" x 108" with Matte White - 88103B
Ceiling recessed square electric screen, 108" x 108" dimensions, with matte white surface and automatic closure door
The Da-Lite 88103B is a ceiling recessed electric screen designed for large venue applications. This square format screen features a 108" x 108" surface area with a 153 in (388.6 cm) diagonal. It utilizes a matte white, non-tensioned surface optimized for front projection, supported by a standard black drop that helps retain projected brightness. This model includes an automatic closure door and is powered by a standard 120V (60Hz) motor. Built for professional installations, the series features a white powder-coated case that is UL Plenum rated. The Advantage Series is designed for two-stage installation, allowing the case to be installed during the rough-in construction stage and the screen surface assembly to be completed during the finishing stage. It also features built-in standard low voltage control for flexible operation and includes TAA compliance for government procurement requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 153 in (388.6 cm) |
| Screen Height | 108 in (274.3 cm) |
| Shipping Weight | 87.5 lbs (39.7 kg) |
| Size | 108" x 108" |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this Da-Lite 88103B screen fit my ceiling configuration?
The 88103B is a ceiling recessed screen designed for two-stage installation. The case can be mounted during the rough-in stage, while the surface assembly is installed during finishing.
What control options are available for the 88103B?
This model features built-in standard low voltage control. For complete control options, you can add a Da-Lite Low Voltage Wall Switch (SKU 40975).
Is this screen suitable for front projection in large venues?
Yes, it is designed for large venue applications and features a standard black drop to help retain projected brightness on the matte white surface.
Does the 88103B meet TAA requirements?
Yes, this SKU is TAA compliant and is manufactured in the US.
Which documents are available for submittals?
Installers can access the Advantage Series Specification Sheet, Instruction Manual, and BIM or CAD models via the Resources tab.
