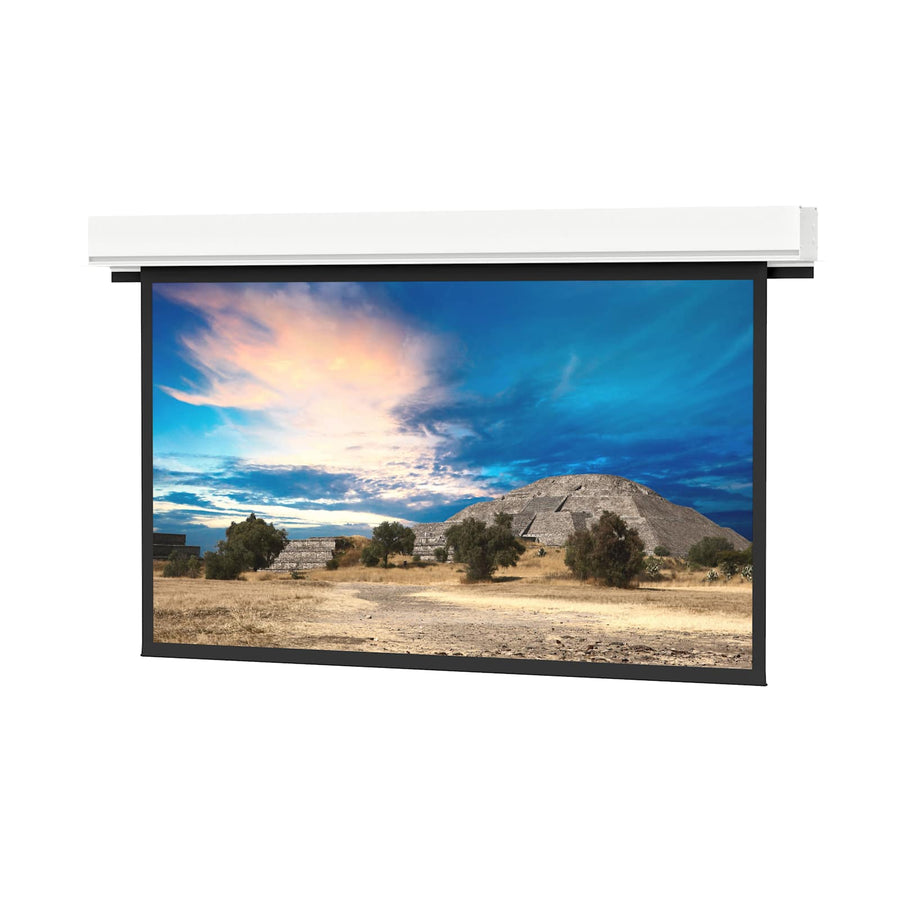

Da-Lite Advantage Series, 100" x 160" with Matte White - 70103F
100" x 160" ceiling recessed electric screen, 189" diagonal, Matte White non-tensioned surface
The Da-Lite 70103F is a 100" x 160" (189" diagonal) ceiling recessed electric screen designed for large venue environments. This Advantage Series unit features a 16:10 Wide screen format with a Matte White non-tensioned surface, optimized for front projection. The assembly includes a standard 120V (60Hz) motor and an automatic closure door to protect the screen when not in use. This specific SKU is a surface, roller, and motor assembly only; the enclosure case or box must be ordered separately. For installation flexibility, the housing features sliding installation brackets for mounting to structures above a drop ceiling, and it is UL Plenum rated. The series utilizes a standard black drop, while the SightLine™ suspension system—available on some Advantage models—can eliminate the need for black borders by using thin cables. This model is TAA compliant and manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 189 in (480.1 cm) |
| Screen Height | 100 in (254 cm) |
| Shipping Dimensions | 186" x 13" x 10" (472.4 x 33 x 25.4 cm) |
| Shipping Weight | 198 lbs (89.8 kg) |
| Size | 100" x 160" or 189" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068770430 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Does this screen include the ceiling enclosure?
No, this SKU (70103F) is the surface, roller, and motor assembly only. The case or box must be ordered separately.
What is required for installation in a drop ceiling?
The unit features sliding installation brackets for flexible mounting to the structure above a drop ceiling and includes an UL Plenum rated case.
Can I control this screen using a wall switch?
Yes, it features standard low voltage control and is compatible with Da-Lite part number 40975 for a low voltage wall switch.
Is this screen TAA compliant for government projects?
Yes, the 70103F is TAA compliant and is manufactured in the US.
What kind of control interface does this model use?
It is equipped with standard low voltage control and includes a Decora-style, three-button wall switch.
