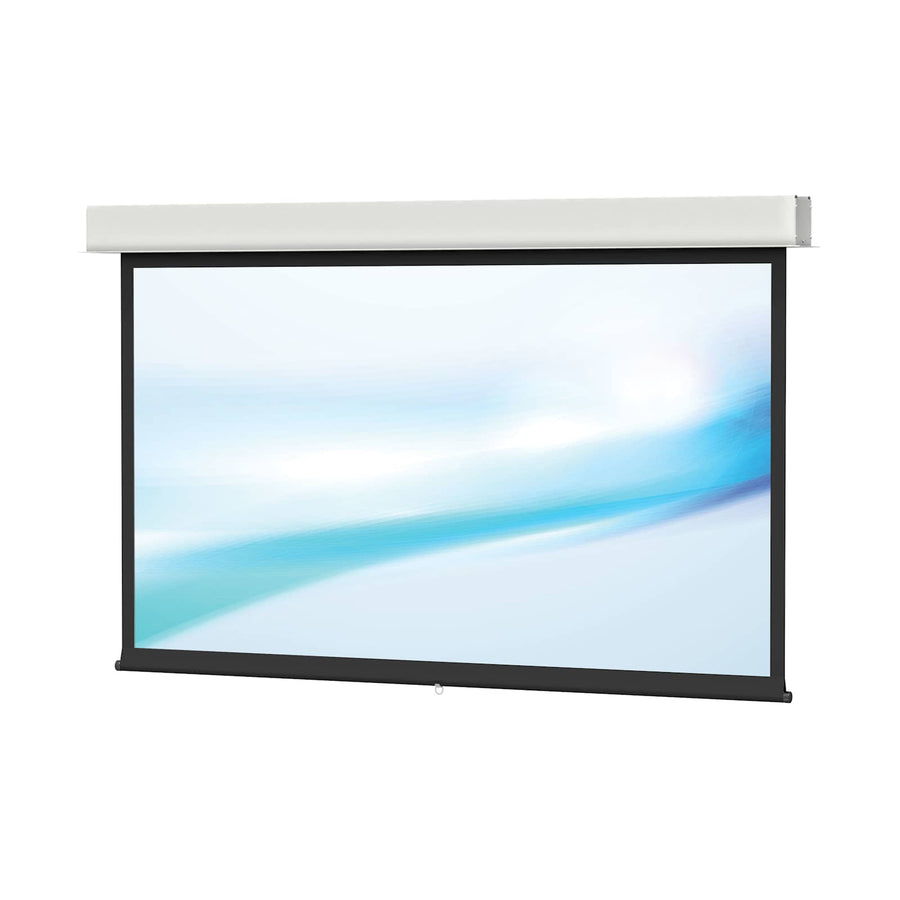

Da-Lite Advantage Manual With CSR, 78" x 139" with Matte White - 85743B
Ceiling recessed manual projection screen, 78" x 139" (159" diagonal) with Matte White surface and CSR controlled return
The Da-Lite 85743B is a manual projection screen designed for ceiling recessed applications, featuring a 78" x 139" dimension with a 159 in (403.9 cm) diagonal. This Advantage Manual model is engineered to simplify installation by including integrated ceiling trim, which conceals the rough opening and eliminates the need for additional finishing work. This specific SKU is a Case/Box Only for Rough-In, allowing the screen case to be installed during the initial rough-in stage, with the fabric assembly completed during the final finishing stage. The screen features a Matte White non-tensioned surface and a 16:9 HDTV format for front projection. Equipped with the Controlled Screen Return (CSR) system, the fabric provides a quiet and controlled retraction into the white powder-coated case. The assembly includes a pull cord and utilizes a standard black backing to help maintain projected brightness.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 159 in (403.9 cm) |
| Screen Height | 78 in (198.1 cm) |
| Shipping Weight | 68 lbs (30.8 kg) |
| Size | 78" x 139" or 159" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this screen fit a 16:9 display setup?
Yes, the 85743B is designed for a 16:9 HDTV screen format with a 78" x 139" (159 in diagonal) projection area.
Can the screen be installed in stages?
Yes, the Advantage Manual series allows for a two-stage installation where the case is installed during rough-in and the fabric is completed during the finishing stage.
What is the purpose of the CSR feature?
The Controlled Screen Return (CSR) system ensures the screen retracts into the case in a quiet and controlled manner.
Is this screen TAA compliant?
Yes, this product is TAA compliant and manufactured in the US.
What is required for the ceiling installation?
The screen is designed for ceiling recessed mounting and includes sliding installation brackets to attach the housing to structures above a drop ceiling.
