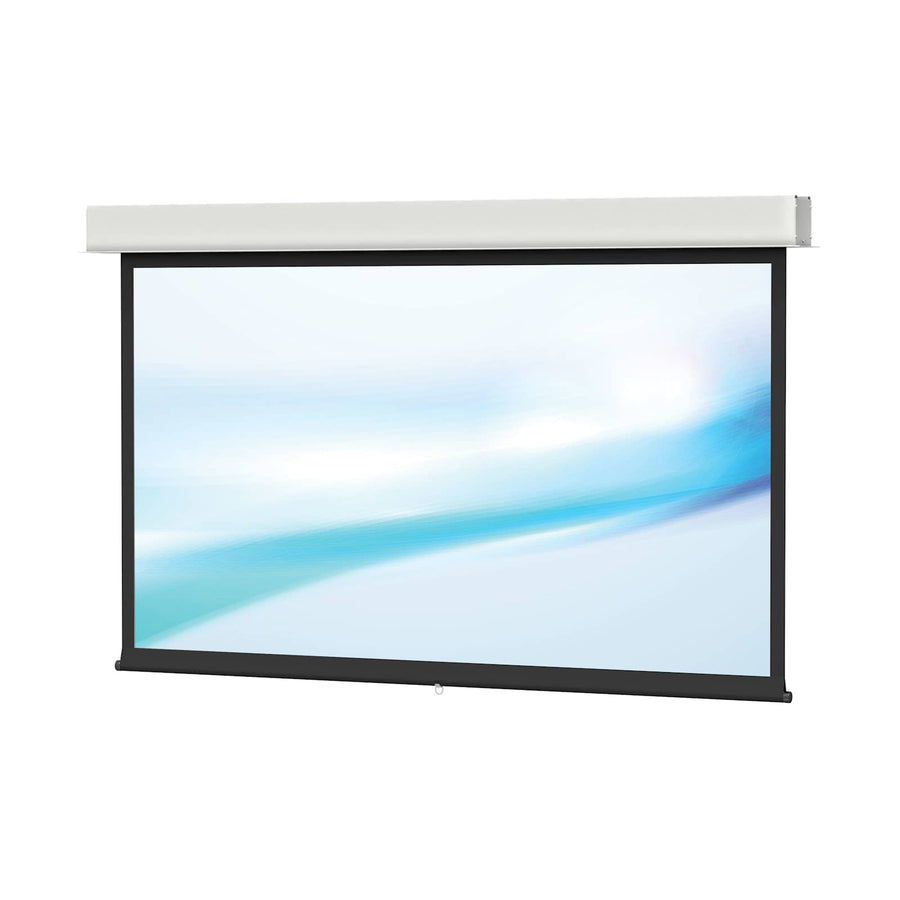

Da-Lite Advantage Manual With CSR, 78" x 139" with Matte White - 85743
Ceiling recessed manual projection screen, 78" x 139" (159" diagonal) with Matte White surface and quiet return
The Da-Lite 85743 is a complete, ceiling recessed manual projection screen designed to streamline the installation process. This Advantage series model features built-in ceiling trim that covers the rough opening once installed, eliminating the need for additional finishing work. It is engineered for front projection on a 16:9 HDTV format using a non-tensioned Matte White surface. For ease of use, this unit includes a pull cord and features a Quiet, Controlled Return (CSR) system to ensure a smooth, silent retraction into the housing. The housing is white powder-coated for a clean aesthetic and includes standard black backing to maintain projected brightness. For installation in drop ceilings, sliding brackets allow for two-stage mounting: the case can be secured during the rough-in stage, with the fabric assembly completed during final finishing. This TAA compliant screen is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 159 in (403.9 cm) |
| Screen Height | 78 in (198.1 cm) |
| Shipping Weight | 119 lbs (54 kg) |
| Size | 78" x 139" or 159" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this screen fit a 16:9 display setup?
Yes, this 85743 model features a 78" x 139" aspect ratio specifically for 16:9 HDTV formats.
How do I install this in a drop ceiling?
The screen uses sliding installation brackets for a two-stage process. You can install the case during rough-in construction and attach the fabric during the finishing stage.
Does this screen require additional trim work?
No, the Advantage line includes ceiling trim built directly into the unit to conceal the rough opening after installation.
What is the benefit of the CSR system?
The Quiet, Controlled Return (CSR) ensures the screen retracts silently and smoothly into the housing; note that the screen must be fully extended during use.
What documents are available for submittals?
You can access the Advantage Manual Specification Sheet and the Advantage CSR Installation guide for technical details.
