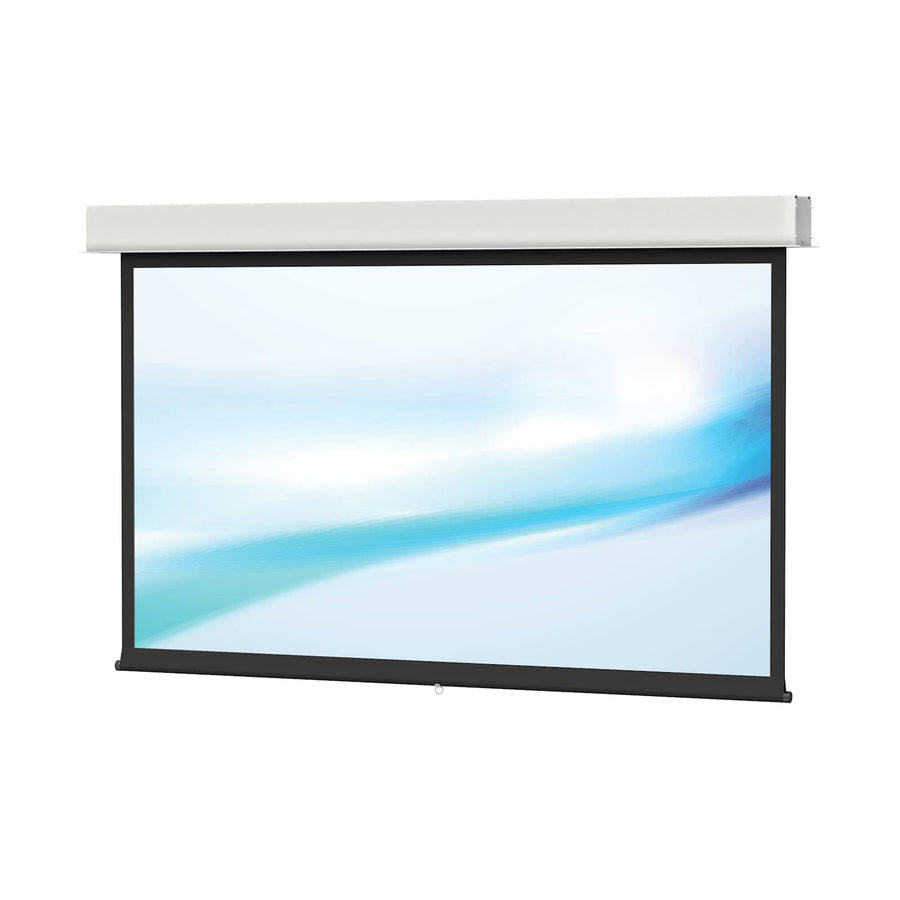

Da-Lite Advantage Manual With CSR, 70" x 70" with High Contrast Matte White - 92693B
70" x 70" square manual ceiling recessed screen with High Contrast Matte White surface and quiet CSR return
The Da-Lite 92693B is a manual ceiling recessed projection screen designed for front projection applications. This 70" x 70" square format screen features a High Contrast Matte White non-tensioned surface, which utilizes a standard black backing to help retain projected brightness. Engineered for streamlined installation, the Advantage line includes built-in ceiling trim to conceal the rough opening, eliminating the need for additional finishing work after installation. This specific SKU is part of the Advantage Manual With CSR series, which incorporates a Controlled Screen Return (CSR) to provide a quiet, controlled retraction of the fabric into the case. The white powder-coated case is UL Plenum rated and includes a pull cord for manual operation. This TAA compliant product is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 99 in (251.5 cm) |
| Screen Height | 70 in (177.8 cm) |
| Shipping Weight | 38.5 lbs (17.5 kg) |
| Size | 70" x 70" |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
All other specifications 5
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
How does the Advantage 92693B install in a drop ceiling?
The installation is a two-stage process using sliding mounting brackets. The screen case can be installed during the initial rough-in construction, while the fabric assembly is completed during the finishing stage.
What is the purpose of the CSR feature on this Da-Lite screen?
The Controlled Screen Return (CSR) ensures a quiet and controlled movement when the screen is retracted into the case. Note that the screen must be fully extended during use.
What tools or accessories are needed for this installation?
This unit includes a pull cord for manual operation. For submittals or technical planning, you can refer to the Advantage Manual With CSR Product Information Sheet.
Is this screen suitable for plenum spaces?
Yes, the case for the 92693B is UL Plenum rated, making it suitable for ceiling recessed applications in plenum environments.
Will this screen work for front projection?
Yes, the 92693B is specifically designed for front projection applications using a High Contrast Matte White surface.
