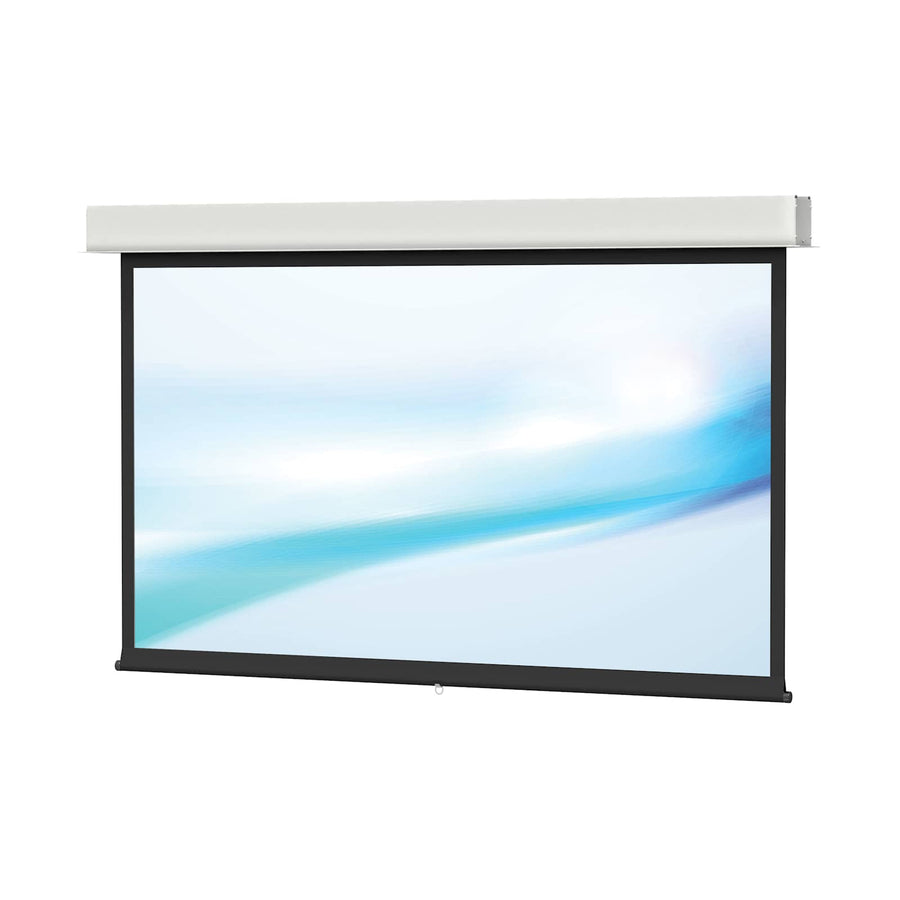

Da-Lite Advantage Manual With CSR, 70" x 70" with High Contrast Matte White - 92693
Ceiling recessed manual projection screen with CSR, 70" x 70" square format and High Contrast Matte White surface
The Da-Lite 92693 is a complete, ceiling recessed manual projection screen featuring a 70" x 70" square screen format. Designed for front projection, this unit utilizes a High Contrast Matte White non-tensioned surface to maintain visual clarity. This Advantage Manual model includes built-in ceiling trim, which allows the installer to conceal the rough opening and eliminate the need for additional finishing work once the screen is installed. The CSR (Controlled Screen Return) system ensures a quiet, controlled return of the fabric into the white powder-coated case. For installation, sliding brackets allow the housing to be attached to the structure above a drop ceiling. This model is TAA compliant and features a black backing to help retain projected brightness. This unit is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 99 in (251.5 cm) |
| Screen Height | 70 in (177.8 cm) |
| Shipping Weight | 66 lbs (29.9 kg) |
| Size | 70" x 70" |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the dimensions of the Da-Lite 92693 screen?
This model features a 70" x 70" square format, which provides a 99 in (251.5 cm) diagonal viewing area.
How does the CSR system work on the Advantage Manual?
The CSR (Controlled Screen Return) system is designed to provide a quiet and controlled return of the fabric into the housing when the screen is retracted.
What installation requirements are needed for this ceiling recessed screen?
The housing can be installed in two stages: the case can be mounted during rough-in construction, and the fabric assembly can be completed during the finishing stage using sliding installation brackets.
Is the Da-Lite 92693 TAA compliant?
Yes, this product is TAA compliant and is manufactured in the USA.
What tools or accessories are needed for installation?
The screen includes a pull cord for manual operation; additional accessories such as a Da-Lite Pull Rod (part number 74689) may be required depending on the specific installation height.
