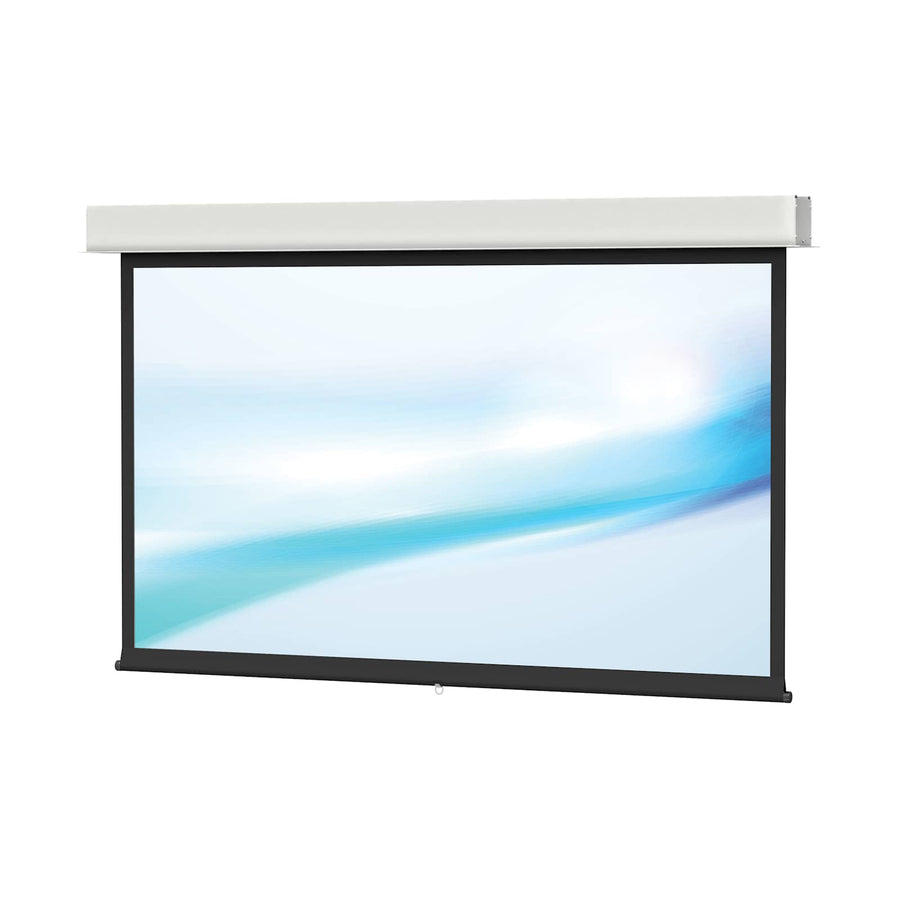

Da-Lite Advantage Manual With CSR, 69" x 92" with Matte White - 85713F
Ceiling recessed manual projection screen, 69" x 92" Matte White surface, featuring a controlled CSR return mechanism
The Da-Lite 85713F Advantage Manual With CSR is a ceiling recessed projection screen designed to simplify the installation process by incorporating the ceiling trim directly into the unit. This integrated trim conceals the rough opening, which eliminates the requirement for installers to perform additional trim work after mounting. This 120 in (304.8 cm) diagonal screen is specifically configured for front projection onto a non-tensioned Matte White surface with a 4:3 video aspect ratio. The unit includes a Quiet, Controlled Return (CSR) mechanism that ensures a smooth and quiet retraction into the housing, and the screen must be fully extended during use. This specific SKU is a Surface, Roller, and Spring Assembly Only; the case and box must be ordered separately. The assembly features a white powder-coated case for a clean aesthetic and a standard black backing to help retain projected brightness. This TAA compliant product is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 120 in (304.8 cm) |
| Screen Height | 69 in (175.3 cm) |
| Shipping Dimensions | 105" x 8" x 6" (266.7 x 20.3 x 15.2 cm) |
| Shipping Weight | 38 lbs (17.2 kg) |
| Size | 69" x 92" or 120" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Product Selection | Surface, Roller, and Spring Assembly Only (for case/box ordered separately) |
All other specifications 8
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068645431 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is included with the Da-Lite 85713F assembly?
This SKU is the Surface, Roller, and Spring Assembly Only. The screen case and box must be ordered separately to complete the installation.
How does the CSR mechanism work on this screen?
The Quiet, Controlled Return (CSR) mechanism provides a smooth, quiet retraction of the fabric into the case. Please note the screen must be fully extended during use.
Is the 85713F suitable for plenum air spaces?
Yes, this model features a UL Plenum rated case, making it suitable for installation in plenum-rated ceiling environments.
What is the screen format and surface type?
The 85713F features a 4:3 video format on a non-tensioned Matte White surface with a standard black backing to optimize projected brightness.
Which document should I use for installation planning?
For installation specifics, you can refer to the Advantage CSR Instructions PDF or the Advantage Manual With CSR Product Information Sheet.
