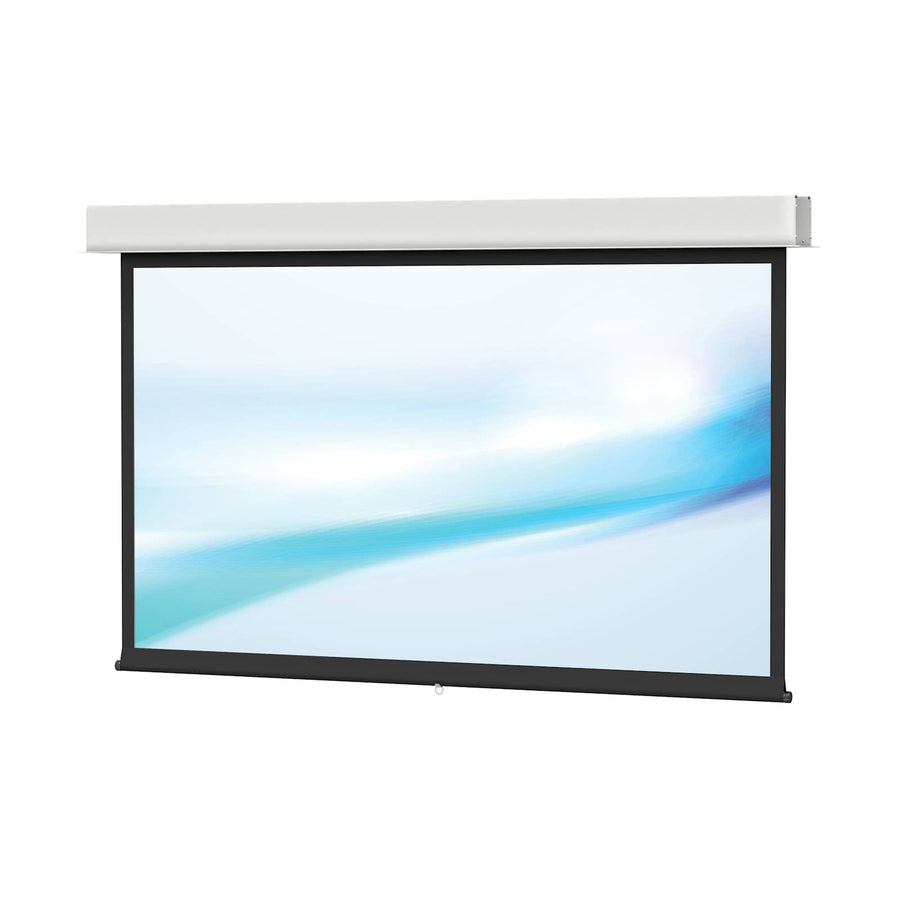

Da-Lite Advantage Manual With CSR, 69" x 92" with Matte White - 85713B
Ceiling recessed manual projection screen with CSR, 69" x 92" surface, and Matte White non-tensioned finish
The Da-Lite 85713B is a ceiling recessed manual projection screen designed to integrate directly into a ceiling assembly. This 120 in (304.8 cm) diagonal screen features a Matte White non-tensioned surface and is configured in a 4:3 video format. A key feature of the Advantage line is the built-in ceiling trim, which is designed to conceal the rough opening once installed, eliminating the need for secondary trim work by the installer. This specific model includes the CSR (Controlled Screen Return) mechanism, which ensures the screen returns to the housing quietly and in a controlled manner. For installation in new construction or drop ceilings, the Advantage series allows for a two-stage process: the white powder-coated, UL Plenum rated case can be installed during the rough-in stage, while the fabric assembly is completed during the final finishing stage. The case features standard black backing to maintain projected brightness for front projection applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 120 in (304.8 cm) |
| Screen Height | 69 in (175.3 cm) |
| Shipping Dimensions | 111" x 13" x 10" (281.9 x 33 x 25.4 cm) |
| Shipping Weight | 49 lbs (22.2 kg) |
| Size | 69" x 92" or 120" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Product Selection | Case/Box Only for Rough-In |
All other specifications 8
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068645417 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the Da-Lite 85713B fit my ceiling installation?
Yes, this is a ceiling recessed model designed to be installed using sliding brackets above a drop ceiling. The integrated trim is built to cover the rough opening once the unit is set.
Can this screen be installed during the construction phase?
Yes, the Advantage series supports two-stage installation. The UL Plenum rated case can be installed during the rough-in stage, and the fabric assembly is completed during the finishing stage.
What is the difference between this and standard manual screens?
The 85713B includes the CSR (Controlled Screen Return) mechanism, which prevents the screen from retracting too quickly, providing a quiet and controlled return to the housing.
What surface material is used on the 85713B?
This model features a Matte White, non-tensioned surface designed for front projection and standard resolution video (4:3 format).
Is this screen TAA compliant for government contracts?
Yes, the 85713B is TAA Compliant and is manufactured in the US.
