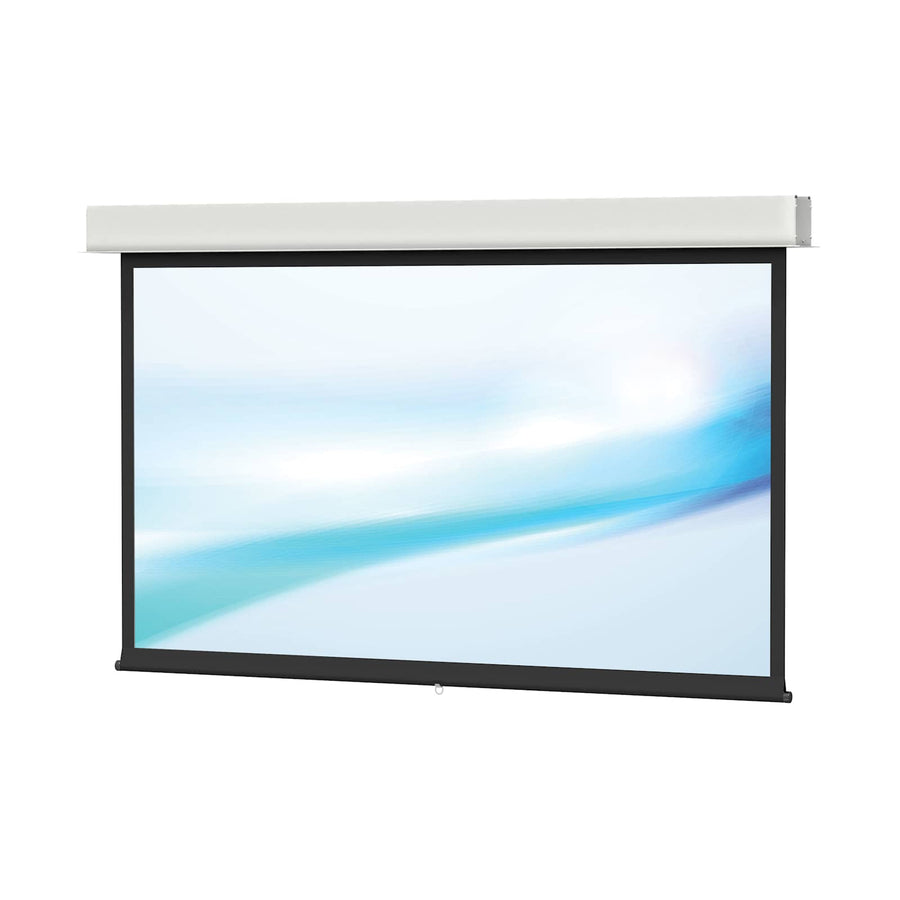

Da-Lite Advantage Manual With CSR, 65" x 116" with Matte White - 85739
Ceiling recessed manual projection screen with Matte White surface, 133" diagonal, and controlled screen return
The Da-Lite 85739 is an Advantage Manual ceiling recessed projection screen designed to simplify the installation process by integrating the trim directly into the unit. This feature eliminates the need for additional finishing work or trim around the rough opening once the unit is mounted. This complete screen solution provides a 16:9 HDTV format with a 65" x 116" (133" diagonal) surface area. The non-tensioned Matte White surface is paired with a standard black backing to ensure high projected brightness. This series features a white powder-coated case for a clean aesthetic and is UL Plenum rated. The CSR (Controlled Screen Return) mechanism ensures that the screen returns to the housing in a quiet, controlled manner. For installation, the housing can be mounted during the rough-in phase using sliding brackets, allowing the fabric assembly to be completed during the final finishing stage.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 133 in (337.8 cm) |
| Screen Height | 65 in (165.1 cm) |
| Shipping Weight | 91 lbs (41.3 kg) |
| Size | 65" x 116" or 133" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this screen fit my ceiling application?
The 85739 is a ceiling recessed model designed to be installed into a rough opening, with integrated trim that conceals the gap.
What is the purpose of the CSR feature on this screen?
The Controlled Screen Return (CSR) ensures the screen returns to the housing in a quiet and controlled manner rather than a rapid snap.
What do I need to install this screen?
This is a complete screen; however, you may require a Da-Lite Pull Rod (part 74689) for operation.
Is this screen TAA compliant?
Yes, this product is TAA compliant and is manufactured in the US.
How is the screen serviced during installation?
The two-stage installation allows the housing to be installed during rough-in construction and the fabric to be attached during the finishing stage.
