Da-Lite Advantage Manual With CSR, 60" x 60" with High Contrast Matte White - 92692F
Square 60" x 60" manual projection screen for ceiling recessed installation with High Contrast Matte White surface

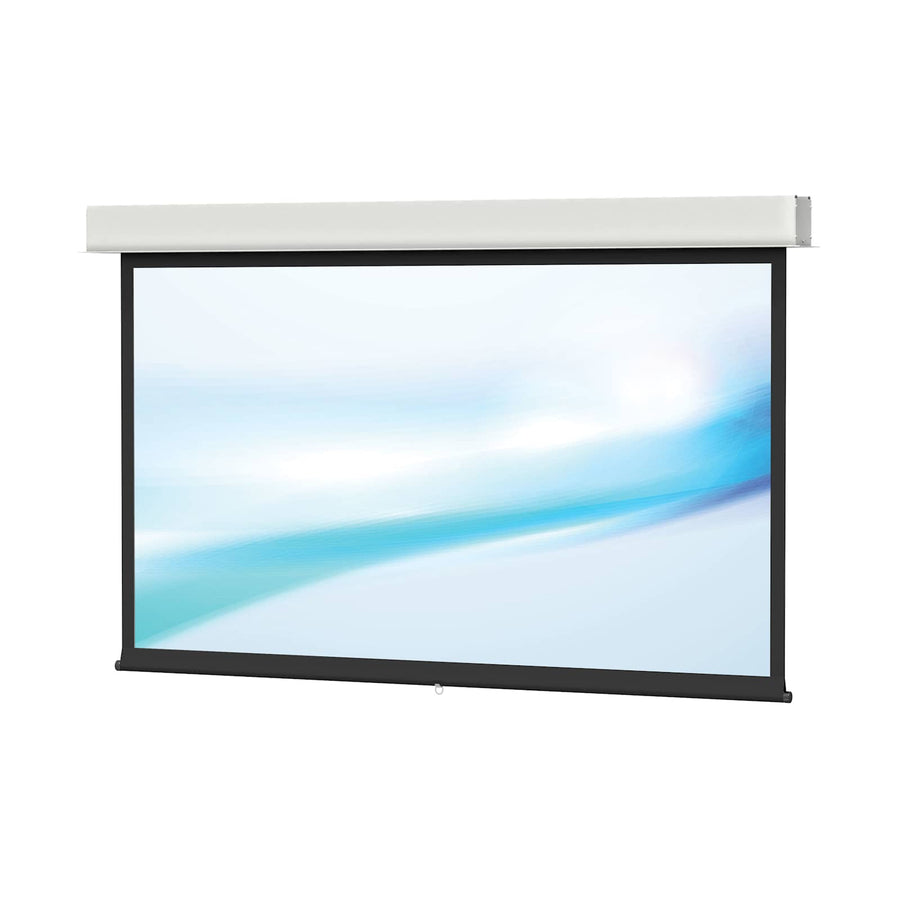

The Da-Lite 92692F is a manual Advantage Manual series projection screen designed for ceiling recessed applications. This 60" x 60" square format screen features a High Contrast Matte White non-tensioned surface and is built for front projection environments. The integrated ceiling trim is designed to conceal the rough opening once installed, eliminating the need for an installer to perform additional trim work. This specific SKU is a Surface, Roller, and Spring Assembly Only, meaning the case/box must be ordered separately. The CSR (Controlled Spring Return) mechanism ensures a quiet and controlled return to the case when the screen is retracted, though the fabric must be fully extended during use. This unit features a white powder-coated case for a clean aesthetic and includes a standard black backing to help retain projected brightness. This model is TAA compliant and the case is UL Plenum rated.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 85 in (215.9 cm) |
| Screen Height | 60 in (152.4 cm) |
| Shipping Dimensions | 68" x 8" x 6" (172.7 x 20.3 x 15.2 cm) |
| Shipping Weight | 25 lbs (11.3 kg) |
| Size | 60" x 60" |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Product Selection | Surface, Roller, and Spring Assembly Only (for case/box ordered separately) |
All other specifications 8
| Projection Type | Front Projection |
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068909434 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is included with the Da-Lite 92692F?
This SKU is the Surface, Roller, and Spring Assembly Only. You must order the case/box separately to complete the assembly.
How does the CSR feature work on this manual screen?
The Controlled Spring Return (CSR) provides a quiet, controlled return to the case when the screen is retracted. The fabric must be fully extended during use.
Is the Da-Lite 92692F TAA compliant?
Yes, this product is TAA compliant and is manufactured in the US.
What type of projection is required for this surface?
This screen is designed for front projection using a High Contrast Matte White non-tensioned surface.
What is the benefit of the Advantage series ceiling trim?
The Advantage line is designed with ceiling trim already in place, which conceals the rough opening to eliminate the need for additional trim work after installation.
