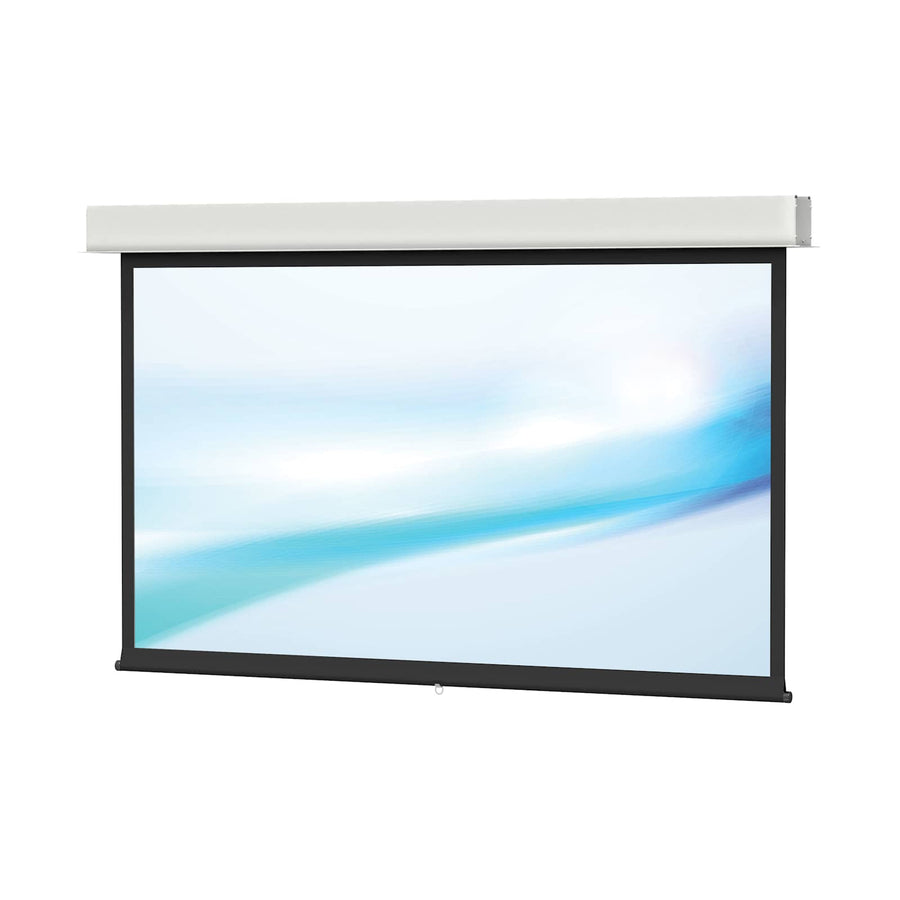

Da-Lite Advantage Manual With CSR, 60" x 60" with High Contrast Matte White - 92692
Ceiling recessed manual projection screen with High Contrast Matte White surface, featuring a quiet, controlled CSR return mechanism
The Da-Lite 92692 is a 60" x 60" manual projection screen designed for ceiling recessed applications. This complete screen solution utilizes the Advantage line's integrated trim to conceal rough openings, which eliminates the need for additional finishing work once installed. The unit features a High Contrast Matte White non-tensioned surface and a standard black backing to help maintain projected brightness. For installation, the housing can be secured to the structure above a drop ceiling in two stages using sliding installation brackets; the case can be mounted during the rough-in phase, while the fabric assembly is completed during the finishing stage. This specific model includes the CSR (Controlled Screen Return) mechanism to ensure the screen returns to the case in a quiet, controlled manner. It is TAA compliant and features a UL Plenum rated case with a white powder-coated finish.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 85 in (215.9 cm) |
| Screen Height | 60 in (152.4 cm) |
| Shipping Weight | 60 lbs (27.2 kg) |
| Size | 60" x 60" |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
All other specifications 5
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this Da-Lite 92692 screen fit my ceiling installation?
This is a ceiling recessed model designed to be installed within the ceiling structure. The integrated trim is designed to hide the rough opening, removing the need for extra trim work.
Does this screen include a mechanism to slow the screen return?
Yes, this model includes the CSR (Controlled Screen Return) feature, which ensures the screen returns to the case in a quiet and controlled manner.
What is the surface type for the 92692 model?
The 92692 features a High Contrast Matte White non-tensioned surface that includes black backing to help retain projected brightness.
Is the Da-Lite 92692 TAA compliant?
Yes, this product is TAA compliant and the case is UL Plenum rated.
Which document provides installation instructions for the CSR feature?
The Advantage CSR Instructions PDF contains the specific details required for installing the Controlled Screen Return mechanism.
