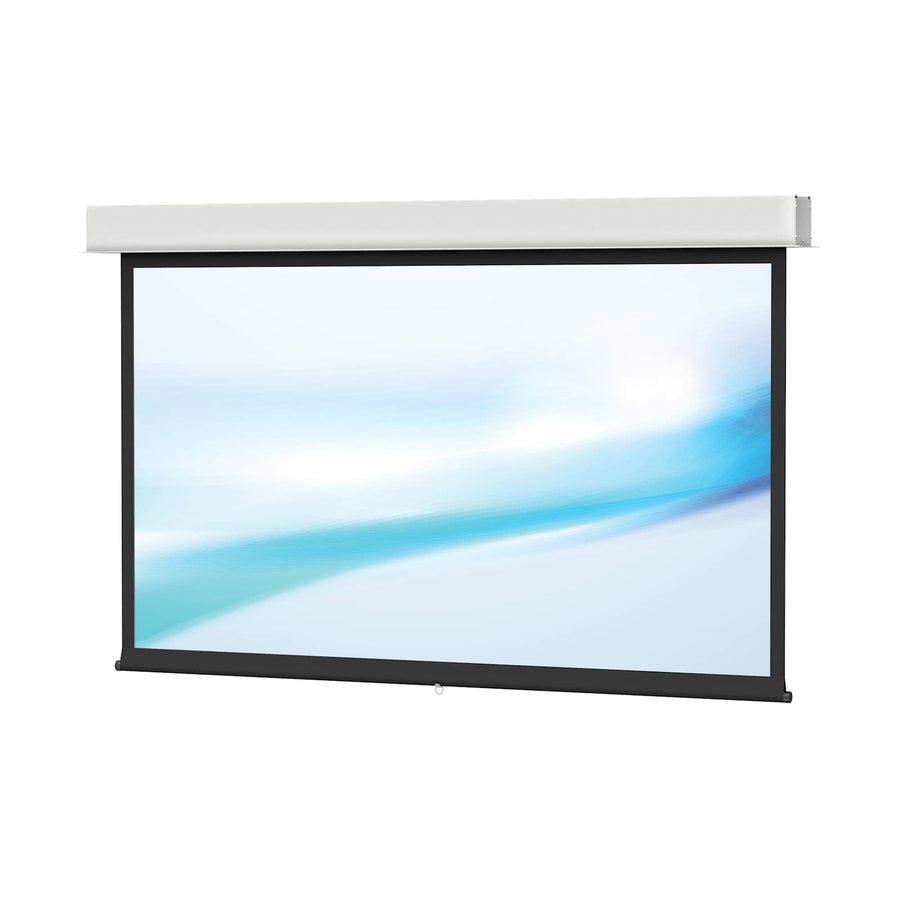

Da-Lite Advantage Manual With CSR, 105" x 140" with Matte White - 85721B
Ceiling recessed manual projection screen with 105" x 140" Matte White surface and CSR for quiet, controlled return
The Da-Lite 85721B is a manual ceiling recessed projection screen designed to simplify the installation process for professional integrators. Featuring an integrated ceiling trim, this series is built to conceal the rough opening upon installation, eliminating the need for additional finishing or trim work. This 180 in (457.2 cm) diagonal screen uses a non-tensioned Matte White surface and is optimized for front projection in a 4:3 video format. For ease of use, the assembly includes a pull cord and features a Controlled Screen Return (CSR) system to ensure the fabric retracts quietly and predictably into the white powder-coated case. The UL plenum rated case allows for installation in plenum environments. This specific SKU is a Case/Box Only for Rough-In, allowing for a two-stage installation where the housing is installed during the rough-in construction stage and the fabric assembly is completed during the final finishing stage.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 180 in (457.2 cm) |
| Screen Height | 105 in (266.7 cm) |
| Shipping Weight | 68 lbs (30.8 kg) |
| Size | 105" x 140" or 180" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this screen fit my 4:3 projection setup?
Yes, the 85721B is specifically configured for a 4:3 video format with a 105 in (266.7 cm) height and 140 in width.
How is the installation process handled for recessed mounting?
Installation can be completed in two stages: the screen case can be installed during the rough-in construction stage, while the fabric assembly is added during the finishing stage.
Does this screen require additional trim work after installation?
No, the Advantage series features built-in ceiling trim designed to conceal the rough opening, eliminating the need for extra trim finishing.
Is this screen TAA compliant for government projects?
Yes, this model is TAA Compliant and is manufactured in the US.
What tools or accessories are needed for operation?
The unit includes a pull cord for manual operation; for specific installation requirements, see the Advantage CSR Installation PDF.
