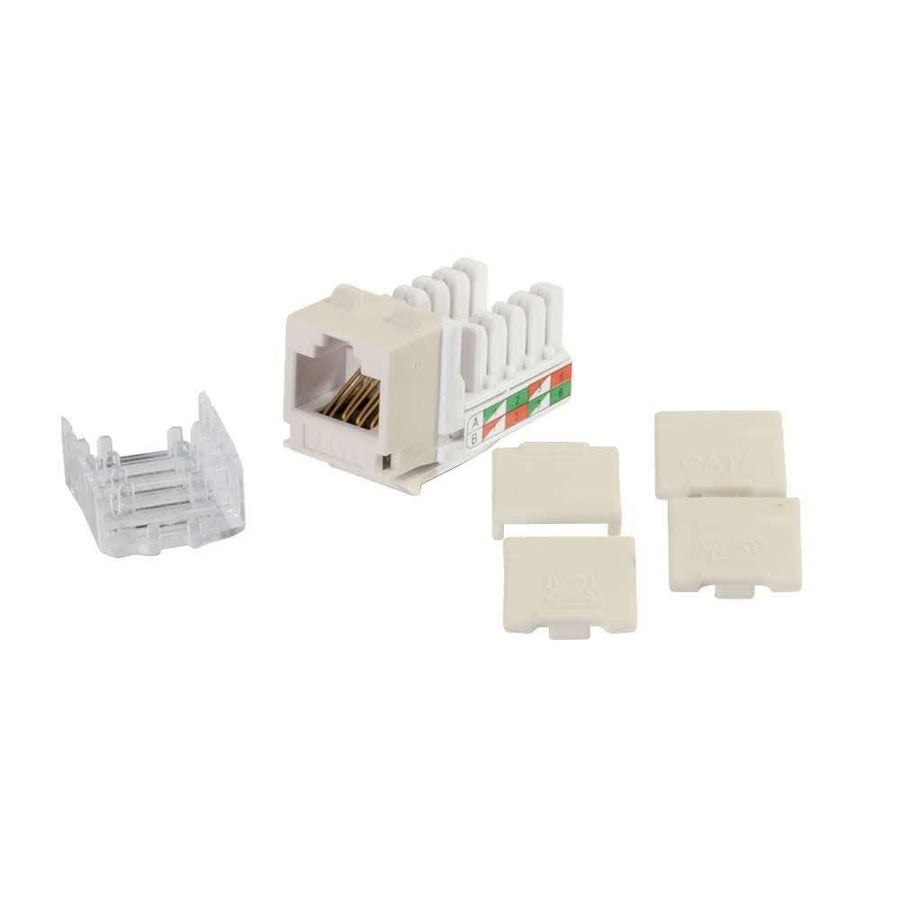

Cat6 RJ45 UTP Keystone Jack - Ivory
Ivory Cat6 RJ45 UTP keystone jack with 110-type IDC termination and gold-plated contacts
The C2G CG29310 is an Ivory Cat6 RJ45 UTP keystone jack designed for high-performance network terminations. This unshielded 8P8C jack is built to meet or exceed Category 6/Class E industry standards according to TIA/EIA 568B 2.1 and ISO 11801 2nd edition. It is engineered to balance signal transmission by managing insertion loss and crosstalk from 1 to 250 MHz. For installation, it utilizes 110/KRONE IDC horizontal punchdown termination suitable for 22-26 AWG UTP solid wire and includes strain relief caps for secure connections. The jack features 50 micro-inch gold plating on the contacts to ensure long-term signal integrity. This component is TIA-606 compliant, allowing for color-coded port designation within a system. It is compatible with C2G wall plates and surface boxes, as well as any standard keystone, angled multimedia wall plate, or patch panel.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Shipping Weight | 0.02 lbs (0 kg) |
| Cable Type | Cat6 |
| Color | Ivory |
| Connector 1 | (1) RJ-45 Female(1) RJ-45 Female |
| Product Type | JackKeystone |
| Special Features | TIA-606 |
| UPC | 757120293101 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
Questions about this part
Will the CG29310 fit in my existing wall plate?
Yes, this keystone jack works with any standard keystone or angled multimedia wall plate, as well as C2G surface boxes and wall plates.
What type of wiring is required for the CG29310 termination?
The jack uses 110/KRONE IDC horizontal punchdown termination designed specifically for 22-26 AWG UTP solid wire.
Is this keystone jack suitable for high-speed data applications?
Yes, this Cat6 jack is rated to balance insertion loss and crosstalk across frequencies from 1 to 250 MHz.
What is the color of this specific SKU?
The CG29310 is an Ivory colored jack, which can be used for standard aesthetics or color-coded designation per TIA-606.
Does this jack meet industry standards for Category 6?
The jack meets or exceeds industry standard Category 6/Class E according to TIA/EIA 568B 2.1 and ISO 11801 2nd edition.
