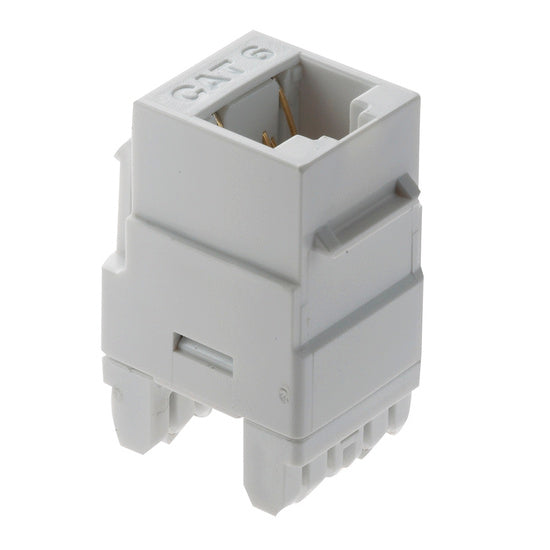

Cat6 RJ45 Keystone Insert in White
Cat6 RJ45 keystone insert in white for use in Keystone wall plates
The On-Q WP3460WH is a Cat6 RJ45 keystone insert in white designed for installation in all Keystone wall plates to create an Ethernet port. This component is built with a high-impact, flame-resistant UL 94V-0 jack housing and utilizes phosphor bronze alloy springs plated with 50 micro-inches of gold over 100 micro-inches of nickel. The vertical design facilitates easy punchdown termination, and the rear retention caps are included to ensure secure wire termination. This component is rated for a minimum insertion and extraction life of 750 cycles and meets Category 6 standards as described in TIA/EIA-568-B.2. For wiring, the insert includes T568 and T568B labels.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cable Type | Cat6 |
| Color | White |
Resources
You'll need these with it
Questions about this part
What wall plates does the WP3460WH work with?
This keystone insert is designed for use in all On-Q Keystone wall plates.
What cable types can I use with this RJ45 insert?
The WP3460WH is compatible with Cat6, Cat5, and Cat5e cables terminated with RJ-45 plugs.
How is the wiring color code handled on this jack?
The insert includes both T568 and T568B wiring labels to assist with termination.
Is there a difference between this and the WP3475WH100?
The WP3475WH100 is a Cat5e QuickConnect version, whereas the WP3460WH is a standard Cat6 insert.
What is the expected durability for the connector contacts?
The jack is rated for a minimum insertion and extraction life of 750 cycles.
