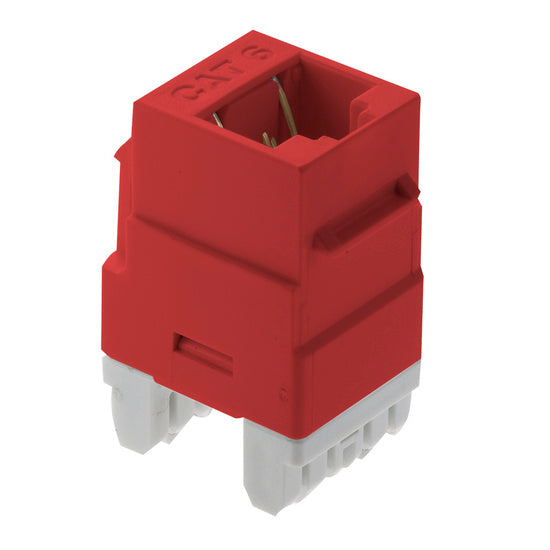

Cat6 RJ45 Keystone Insert in Red
Red Cat6 RJ45 Keystone Insert for Ethernet port creation in any Keystone Wall Plate
The On-Q WP3460RE is a red Cat6 RJ45 keystone insert used to create an Ethernet port within any Keystone Wall Plate. This component is designed to connect to Cat5, Cat5e, or Cat6 cables that have been terminated with RJ-45 plugs. The vertical design facilitates easy punchdown termination during installation, and rear retention caps are included to ensure a secure wire termination. The jack housing is constructed from high-impact, flame-resistant UL 94V-0 plastic, and the spring wire features a phosphor bronze alloy plated with 50 micro-inch of gold over 100 micro-inches of nickel. This insert is rated for a minimum insertion and extraction life of 750 cycles.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cable Type | Cat6 |
| Color | Red |
Resources
Questions about this part
Will this WP3460RE work with Cat5e cabling?
Yes, this keystone insert connects to Cat5, Cat5e, or Cat6 cables terminated with RJ-45 plugs.
What standard does this Cat6 insert meet?
This insert meets the Category 6 requirements described in the TIA/EIA-568-B.2 standard.
How is the wiring color code identified on the insert?
The insert includes T568 and T568B wiring labels to assist with correct termination.
