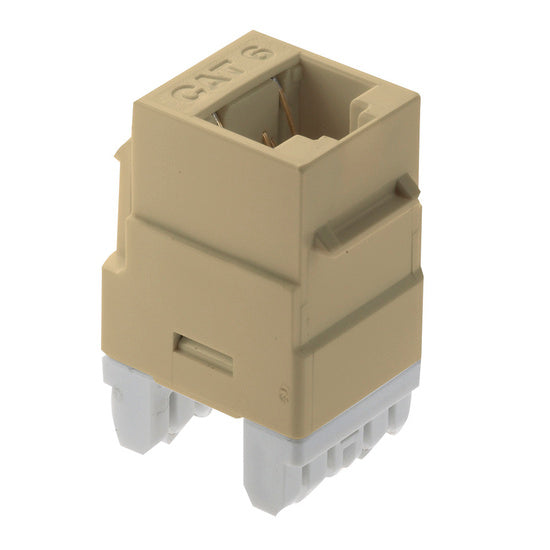

Cat6 RJ45 Keystone Insert in Light Almond
Cat6 RJ45 keystone insert in Light Almond finish for use in all Keystone wall plates
The On-Q WP3460LA is a high-quality Cat6 RJ45 keystone insert designed to create a reliable Ethernet port within any Keystone wall plate. This component is built for easy punchdown termination via its vertical design and includes T568 and T568B wiring labels to ensure correct installation. The jack housing is constructed from high-impact, flame-resistant UL 94V-0 plastic. To ensure a secure connection, it features rear retention caps for wire termination and uses phosphor bronze alloy spring wire plated with 50 micro-inch of gold over 100 micro-inches of nickel. This connector is rated for a minimum insertion and extraction life of 750 cycles and meets Category 6 specifications as described in TIA/EIA-568-B.2.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cable Type | Cat6 |
| Color | Light Almond |
Resources
You'll need these with it
12-Port Blank Keystone/Multimedia Patch Panel
CG03857$25.99
2-Port Decorator Outlet Strap in White
WP3412WH$1.79
24-Port Keystone Rack Mount Patch Panel
WP24RM$39.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
Surface Mount Box 2-Port in White
WP3502WH$2.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Cable Management Strap - 12 Piece
TW12$25.20
15ft (4.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG22015$14.99
6ft (1.8m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03983$7.99
Questions about this part
What kind of cabling is compatible with the WP3460LA?
This keystone insert is designed for use with Cat5, Cat5e, or Cat6 cables terminated with RJ-45 plugs.
Which wall plates can I use this keystone in?
The WP3460LA is compatible with all On-Q Keystone wall plates.
What do I need to complete a wall plate installation?
You will need to purchase a Keystone wall plate, such as the WP3402WH or a surface mount box like the WP3501WH, to house this insert.
Does this keystone meet industry standards?
Yes, this component meets Category 6 standards as described in TIA/EIA-568-B.2.
Is this part number the same as the Pass & Seymour version?
Yes, this SKU is the replacement for the previously used Pass & Seymour Part # KS68ABLA.
