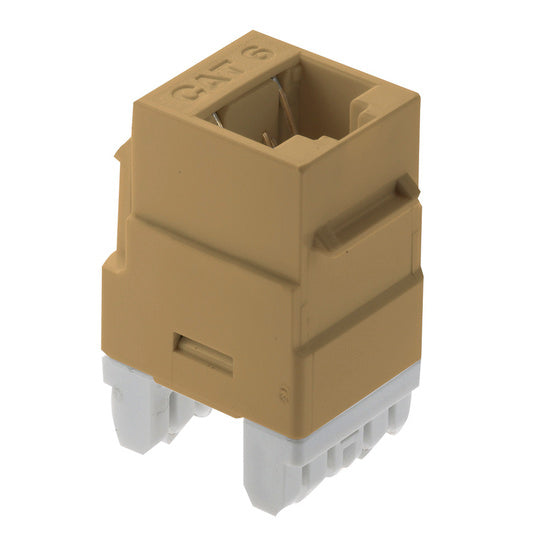

Cat6 RJ45 Keystone Insert in Ivory
Ivory Cat6 RJ45 keystone insert used to create Ethernet ports in Keystone wall plates
The WP3460IV is an Ivory Cat6 RJ45 keystone insert used to create Ethernet ports within any standard Keystone wall plate. This component is designed for terminating Cat5, Cat5e, or Cat6 cables and features a vertical design to facilitate easy punchdown termination. The jack housing is constructed from high-impact, flame-resistant UL 94V-0 plastic. To ensure secure wire termination, the unit includes rear retention caps. Each insert is built with phosphor bronze alloy springs plated with 50 micro-inch gold over 100 micro-inches of nickel, supporting a minimum insertion and extraction life of 750 cycles. This keystone meets the Category 6 standards described in TIA/EIA-568-B.2.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cable Type | Cat6 |
| Color | Ivory |
Resources
You'll need these with it
6ft (1.8m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03983$7.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
24-Port Keystone Rack Mount Patch Panel
WP24RM$39.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
12-Port Blank Keystone/Multimedia Patch Panel
CG03857$25.99
Surface Mount Box 2-Port in White
WP3502WH$2.99
15ft (4.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG22015$14.99
2-Port Decorator Outlet Strap in White
WP3412WH$1.79
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Cable Management Strap - 12 Piece
TW12$25.20
Questions about this part
What type of cabling is compatible with the WP3460IV?
This keystone insert is compatible with Cat5, Cat5e, and Cat6 cables terminated with RJ-45 plugs.
What is required to create a complete Ethernet outlet?
To create a functional outlet, you must install this keystone insert into a compatible Keystone wall plate or surface mount box, such as the WP3501WH or WP3502WH.
How is the wiring color code specified on the insert?
The WP3460IV includes integrated T568 and T568B wiring labels to assist with correct termination.
Is the WP3460IV suitable for patch panels?
Yes, these inserts can be used in various hardware like the WP24RM 24-Port Keystone Rack Mount Patch Panel or the CG3857 12-Port Blank Patch Panel.
What is the durability rating for this keystone jack?
The jack is rated for a minimum of 750 insertion and extraction cycles.
