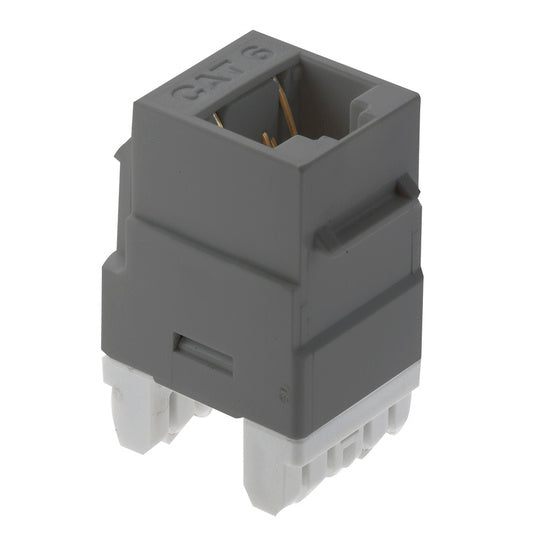

Cat6 RJ45 Keystone Insert in Gray
Gray Cat6 RJ45 keystone insert for use in all standard Keystone wall plates
The On-Q WP3460GY is a gray Cat6 RJ45 keystone insert designed to create a functional Ethernet port within any Keystone wall plate. This component is compatible with Cat5, Cat5e, or Cat6 cabling that has been terminated with RJ-45 plugs. To ensure a reliable connection, the jack features a vertical design to facilitate easy punchdown termination and includes rear retention caps to keep wire terminations secure. The housing is constructed from high-impact, flame-resistant UL 94V-0 plastic, while the phosphor bronze alloy spring wire is plated with 50 micro-inch gold over 100 micro-inches of nickel to ensure durability. It is rated for a minimum insertion and extraction life of 750 cycles and meets Category 6 standards as defined in TIA/EIA-568-B.2.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cable Type | Cat6 |
| Color | Gray |
Resources
You'll need these with it
12-Port Blank Keystone/Multimedia Patch Panel
CG03857$25.99
2-Port Decorator Outlet Strap in White
WP3412WH$1.79
24-Port Keystone Rack Mount Patch Panel
WP24RM$39.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
Surface Mount Box 2-Port in White
WP3502WH$2.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Cable Management Strap - 12 Piece
TW12$25.20
15ft (4.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG22015$14.99
6ft (1.8m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03983$7.99
Questions about this part
What type of cabling is compatible with the WP3460GY?
This keystone insert is designed for use with Cat5, Cat5e, or Cat6 cables that are terminated with RJ-45 plugs.
Which wall plates can I use this keystone insert in?
The WP3460GY is designed for use in all Keystone wall plates, including the On-Q WP3402WH 1-Gang 2-Port Wall Plate or surface mount boxes like the WP3502WH.
What wiring standards are supported by this connector?
The jack includes integrated T568 and T568B wiring labels to assist with correct termination during installation.
What is the material composition of the contacts?
The spring wire is made of a phosphor bronze alloy that is plated with 50 micro-inch of gold over 100 micro-inches of nickel.
Is this keystone insert compliant with industry standards?
Yes, this component meets the Category 6 specifications described in TIA/EIA-568-B.2.
