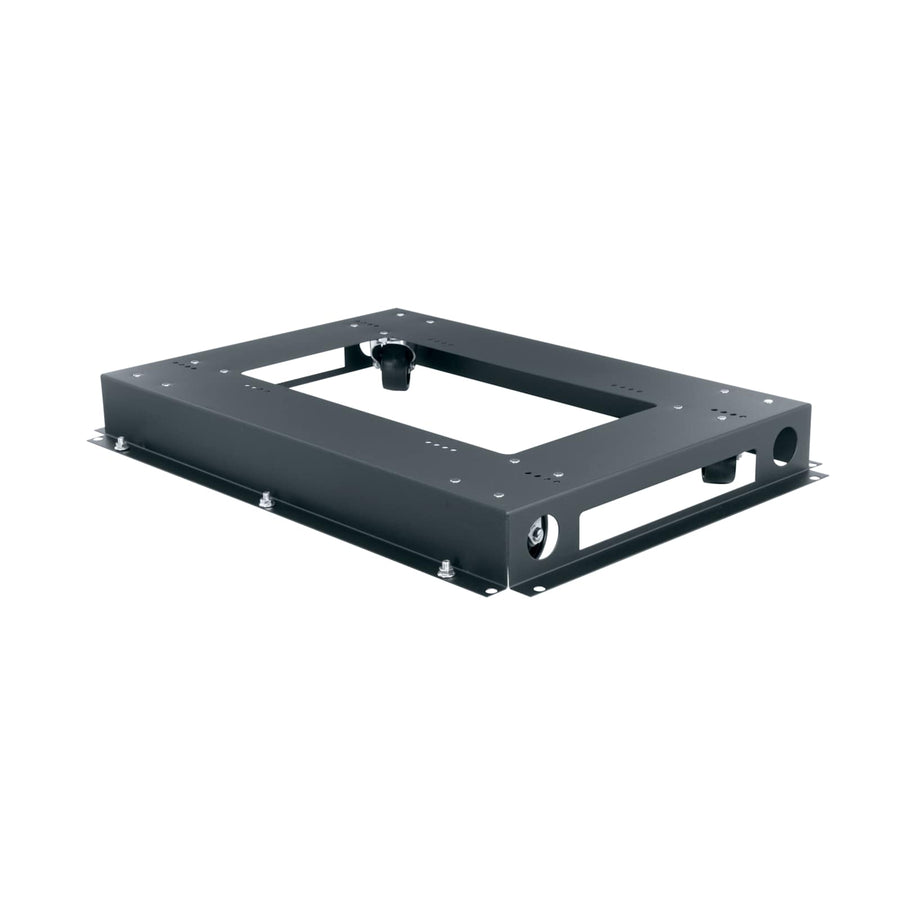

Caster Base for 42 Inch DeepMRK Series
Caster base for 42 inch deep MRK Series racks, 1,300 lbs capacity, with 3" non-locking swivel casters
The CBS-MRK-42 is a caster base designed to fit inside 42 inch deep MRK Series racks. This inner caster base design is engineered to keep the rack height low, increasing the overall rack height by only 1". The steel construction features a black wrinkle powder coat finish and is UL Listed in the US and Canada. For stability and placement control, this base includes four 3" pre-installed non-locking commercial grade swivel casters. To secure the rack in place once positioned, this unit works with LF leveling feet. With a weight capacity of 1,300 lbs (589.7 kg), this base provides a stable foundation for heavy equipment deployments within the MRK series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 39.88 in (101.3 cm) |
| Height | 4 in (10.2 cm) |
| Product Weight | 27.9 lbs (12.7 kg) |
| Shipping Weight | 29.9 lbs (13.6 kg) |
| Weight Capacity | 1300 lbs (589.7 kg) |
| Width | 20.88 in (53 cm) |
| Base Series | MRK |
| Finish | Black Wrinkle Powder Coat |
| Style | Standard |
| UPC | 656747105203 |
| Certifications | UL Listed |
Resources
Questions about this part
Will the CBS-MRK-42 fit in my 42 inch deep MRK rack?
Yes, this base is specifically designed to fit inside 42 inch deep MRK Series racks, increasing the total height by 1".
How do I secure the rack once it is on casters?
You can use LF leveling feet with this caster base to secure the rack in place.
What is the weight capacity of this caster base?
The CBS-MRK-42 has a weight capacity of 1,300 lbs (589.7 kg).
What type of casters are included with the base?
The base comes with four 3" pre-installed non-locking commercial grade swivel casters.
Which technical drawings are available for submittals?
You can find CAD technical specification drawings (dwg), 3D CAD drawings (dwg), and the CBS-BS instruction sheet (PDF) in the resources section.
