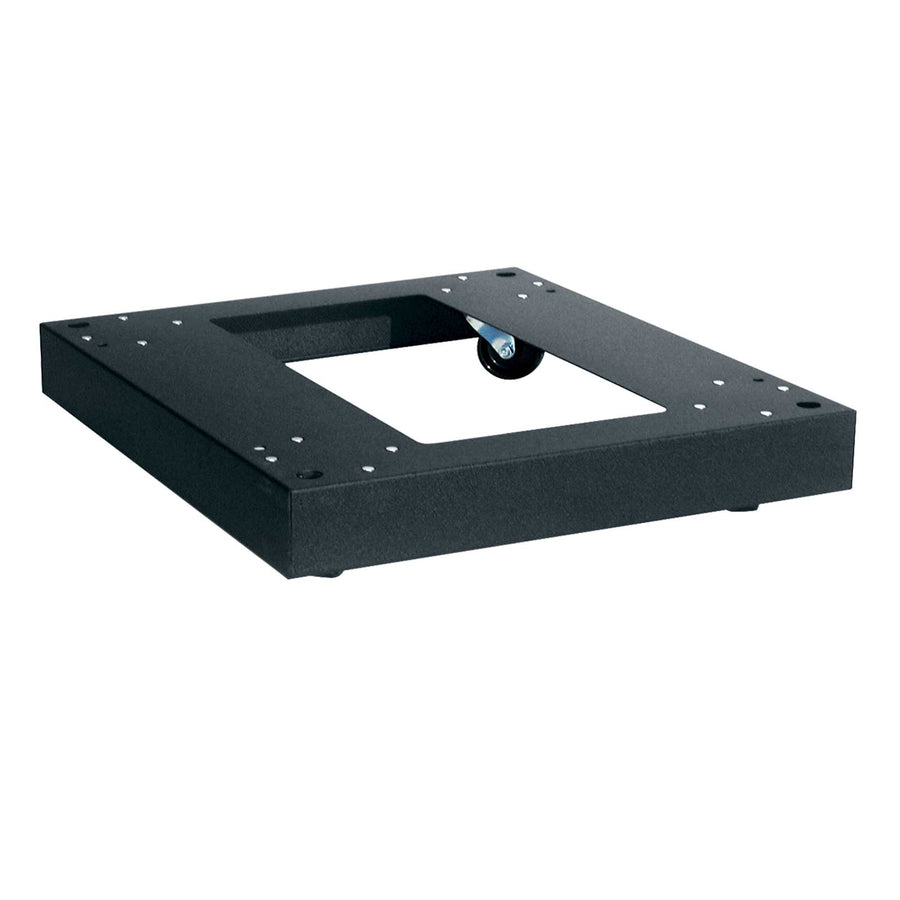

Caster Base for 36 Inch Deep DRK Series
Caster base for 36 inch deep DRK Series racks, supporting 1,300 lbs with 4 pre-installed 3" swivel casters
The Middle Atlantic CBS-DRK-36 is a heavy-duty caster base designed specifically for use within 36" deep DRK Series racks. This inner caster base design is engineered to keep the rack height low, which maintains overall stability for the loaded system. By utilizing this base, the total rack height increases by only 1". Constructed from robust steel with a black wrinkle powder coat finish, this base is UL Listed in the US and Canada. It includes four 3" pre-installed non-locking commercial grade swivel casters to facilitate movement. For permanent installation, this base is compatible with LF leveling feet to secure the rack in place.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 33.86 in (86 cm) |
| Height | 4.03 in (10.2 cm) |
| Product Weight | 21.4 lbs (9.7 kg) |
| Shipping Weight | 23.4 lbs (10.6 kg) |
| Weight Capacity | 1300 lbs (589.7 kg) |
| Width | 28.88 in (73.4 cm) |
| Base Series | DRK |
| Finish | Black Wrinkle Powder Coat |
| Style | Standard |
| UPC | 656747040788 |
| Certifications | UL Listed |
Resources
You'll need these with it
Questions about this part
Will the CBS-DRK-36 fit my DRK Series rack?
This base is designed to fit inside 36 inch deep DRK Series racks and will increase the total rack height by 1".
What is the weight capacity of the CBS-DRK-36?
The CBS-DRK-36 has a weight capacity of 1,300 lbs (589.7 kg).
How can I secure the rack once it is on casters?
You can use LF leveling feet to secure the rack in place after it has been mounted on this caster base.
What type of casters are included with this base?
This model comes with four 3" pre-installed non-locking commercial grade swivel casters.
Is the CBS-DRK-36 TAA compliant?
Yes, this product is TAA compliant and is UL Listed in the US and Canada.
