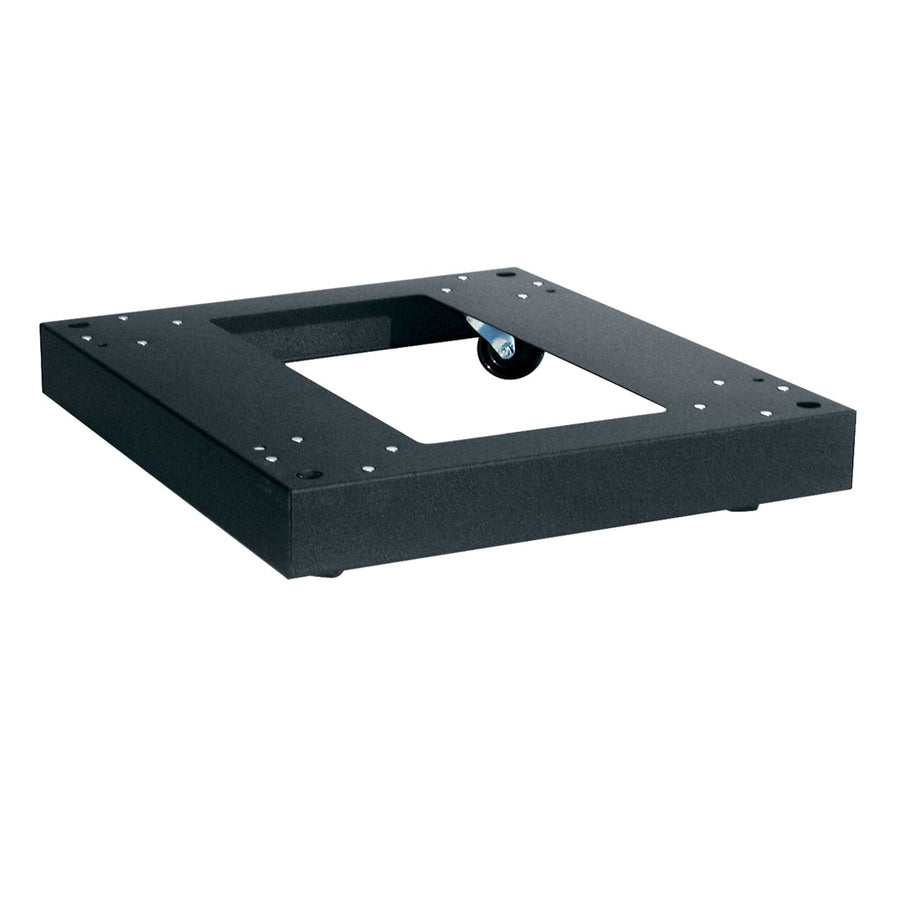

Caster Base for 31 Inch Deep DRK Series
Caster base for 31" deep DRK Series racks, featuring 1,300 lbs capacity and 3" swivel casters
The Middle Atlantic CBS-DRK-31 is a specialized caster base designed specifically for use within 31" deep DRK Series racks. By utilizing an inner caster base design, this component helps maintain a low center of gravity to improve rack stability. This base increases the overall height of your rack by 1" and is constructed from robust steel with a Black Wrinkle Powder Coat finish. It comes equipped with (4) 3" non-locking, commercial-grade swivel casters that are pre-installed for convenience. This UL Listed base supports a weight capacity of 1,300 lbs (589.7 kg). To secure the rack in place once positioned, this base is compatible with LF leveling feet.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 29.26 in (74.3 cm) |
| Height | 4.03 in (10.2 cm) |
| Product Weight | 28 lbs (12.7 kg) |
| Shipping Weight | 30 lbs (13.6 kg) |
| Weight Capacity | 1300 lbs (589.7 kg) |
| Width | 28.88 in (73.4 cm) |
| Base Series | DRK |
| Finish | Black Wrinkle Powder Coat |
| Style | Standard |
| UPC | 656747036637 |
| Certifications | UL Listed |
Resources
You'll need these with it
Questions about this part
Will the CBS-DRK-31 fit my DRK rack?
This caster base is specifically designed to fit inside 31" deep DRK Series racks and increases the total rack height by 1".
What do I need to buy to secure the rack after moving it?
You can use LF leveling feet to secure the rack in place once it has been positioned on these casters.
What is the weight capacity of this caster base?
The CBS-DRK-31 has a weight capacity of 1,300 lbs (589.7 kg).
Does this base come with the casters included?
Yes, the unit comes with (4) 3" pre-installed non-locking commercial grade swivel casters.
What is the purpose of the inner caster base design?
The inner design is engineered to keep the rack low to the ground to improve overall stability.
