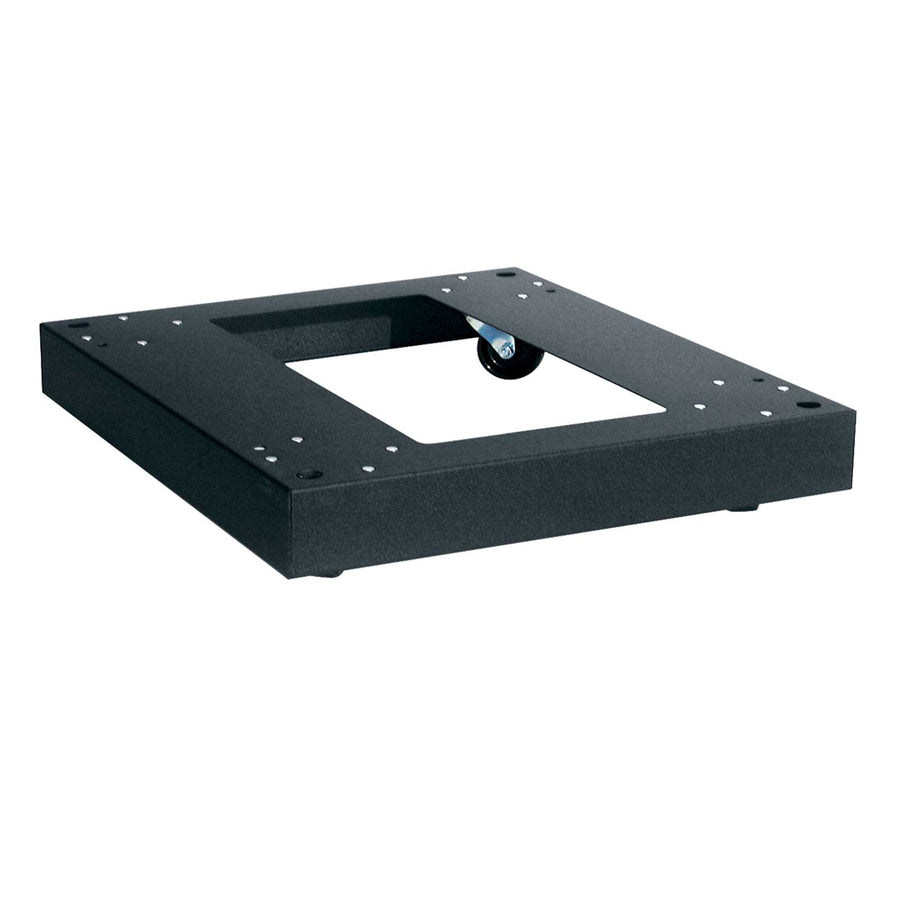

Caster Base for 26 Inch DeepMRK Series
Caster base for 26" deep MRK Series racks, 1300 lbs capacity, includes four 3" commercial-grade swivel casters
The CBS-MRK-26 is a caster base designed specifically for use inside 26" deep MRK Series racks. By utilizing an inner caster base design, this component maintains a low profile for increased stability, only adding 4 in (10.2 cm) to the total height of the rack. This base is constructed from robust steel with a Black Wrinkle Powder Coat finish and features (4) 3" pre-installed non-locking, commercial-grade swivel casters for mobility. It is rated with a weight capacity of 1300 lbs (589.7 kg) and is UL Listed for use in the US and Canada. To secure the rack in a fixed position after moving it, this base is compatible with LF leveling feet.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 24.25 in (61.6 cm) |
| Height | 4 in (10.2 cm) |
| Product Weight | 21.8 lbs (9.9 kg) |
| Shipping Weight | 23.8 lbs (10.8 kg) |
| Weight Capacity | 1300 lbs (589.7 kg) |
| Width | 20.88 in (53 cm) |
| Base Series | MRK |
| Finish | Black Wrinkle Powder Coat |
| Style | Standard |
| UPC | 656747003363 |
| Certifications | UL Listed |
Resources
You'll need these with it
Questions about this part
Will the CBS-MRK-26 fit my rack?
This caster base is designed specifically for MRK Series racks that are 26" deep. It is an inner platform design that only increases the overall rack height by 4 in (10.2 cm).
How much weight can this caster base support?
The CBS-MRK-26 has a rated weight capacity of 1300 lbs (589.7 kg).
Can I secure the rack once it is on casters?
Yes, this base works with LF leveling feet to secure the rack in place once it has been moved to its final position.
What kind of casters are included with this base?
It comes with four 3" pre-installed non-locking commercial-grade swivel casters for easy mobility.
What documentation is available for submittals?
For technical submittals, you can refer to the Caster Inner Platform Bases 3D CAD Drawing (dwg) or the Caster Inner Platform Bases CAD Technical Specification Drawings (dwg) located in the Resources tab.
