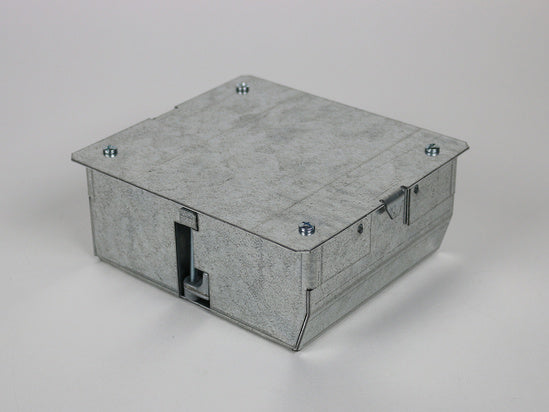

CAF3 Shallow Three Gang Raised Floor Box
Shallow three gang floor box for power and data in raised or wood floor applications, featuring auto-close egress doors
The CAF3 Shallow Three Gang Raised Floor Box is designed to house up to three gangs of audio/video, communication, or power devices within two separate compartments. This compact, silver-finish solution is built for shallow installation requirements in commercial offices, healthcare facilities, education environments, and retail spaces. The unit is compatible with both wood floor and raised floor applications. For ease of use, it features a hinged door with a pull handle that opens to a full 180-degree angle, allowing installers and users easy access to the internal devices. The box includes trade-sized knockouts, specifically two 1/2'' and two 3/4'' knockouts, to accommodate various service combinations. To minimize trip hazards, the auto-close egress doors lock in the open position and automatically close around cables to protect the wiring. This product meets NEC Section 300.22(C) for use in air handling spaces and raised floor plenums, and it is RoHS compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 7.38 in (18.8 cm) |
| Height | 3.25 in (8.3 cm) |
| Width | 6.75 in (17.1 cm) |
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | Silver |
Resources
Questions about this part
What type of floor applications is the CAF3 compatible with?
The CAF3 is designed for use in both wood floor and raised floor applications, making it suitable for various commercial environments.
Will the CAF3 work in an air handling space or plenum?
Yes, this floor box meets NEC Section 300.22(C) requirements for use in raised floor plenums and air handling spaces.
How many knockouts does this floor box have for wiring?
The unit is equipped with four trade-sized knockouts: two 1/2'' knockouts and two 3/4'' knockouts.
How does the egress door work on the CAF3?
The auto-close egress doors are designed to lock in position when open and automatically close around wires to protect cabling and mitigate trip hazards.
Which document should I use for submittals regarding the CAF3?
For electrical system submittals, you can refer to the CAF3 Floor Box Cutsheet or the SECTION 16141 - CAF Series Floor Boxes for Electrical Systems document.
