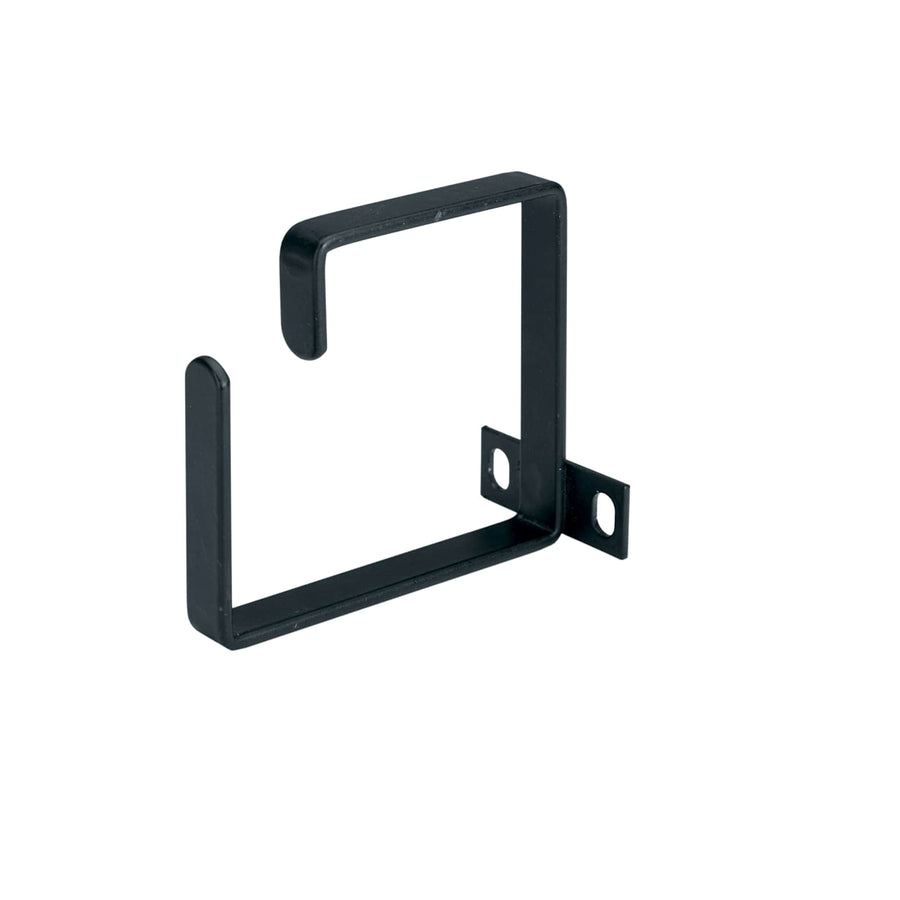

Cable Manager, Wall Mount or Rackmount
Horizontal cable manager for rack or wall mounting, providing 7.5 square inches of cabling area for organized patch cord routing
The D-RING is a horizontal cable manager designed to organize patch cords and maintain the required bend radius for cabling. This component is constructed from 16-gauge steel and features a durable black powder coat finish. It can be used to add individual cable management points to a rack or mounted directly to a wall using appropriate fasteners. For optimal performance and to avoid exceeding the recommended 50% fill rate, this unit provides 7.5 square inches of cabling area. Based on this 50% fill rate recommendation, a single ring can hold 120 Cat5e cables. The unit measures 3.25 in (8.3 cm) wide, 1.75 in (4.4 cm) high, and 3.78 in (9.6 cm) deep.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 3.78 in (9.6 cm) |
| Height | 1.75 in (4.4 cm) |
| Width | 3.25 in (8.3 cm) |
| Component Type | Horizontal |
| TAA Compliant | No |
| UPC | 656747004384 |
Resources
Questions about this part
How much cabling can I fit in one D-RING?
This manager provides 7.5 square inches of area. At the recommended 50% fill rate, it can hold 120 Cat5e cables.
Can I mount this to a wall instead of a rack?
Yes, this D-RING is a versatile component that can be mounted to walls or racks using appropriate fasteners.
What is the maximum recommended cable fill for this unit?
For optimal performance, do not exceed a 50% fill rate when passing cables through these rings.
What are the dimensions of the D-RING?
The unit has a height of 1.75 in (4.4 cm), a width of 3.25 in (8.3 cm), and a depth of 3.78 in (9.6 cm).
