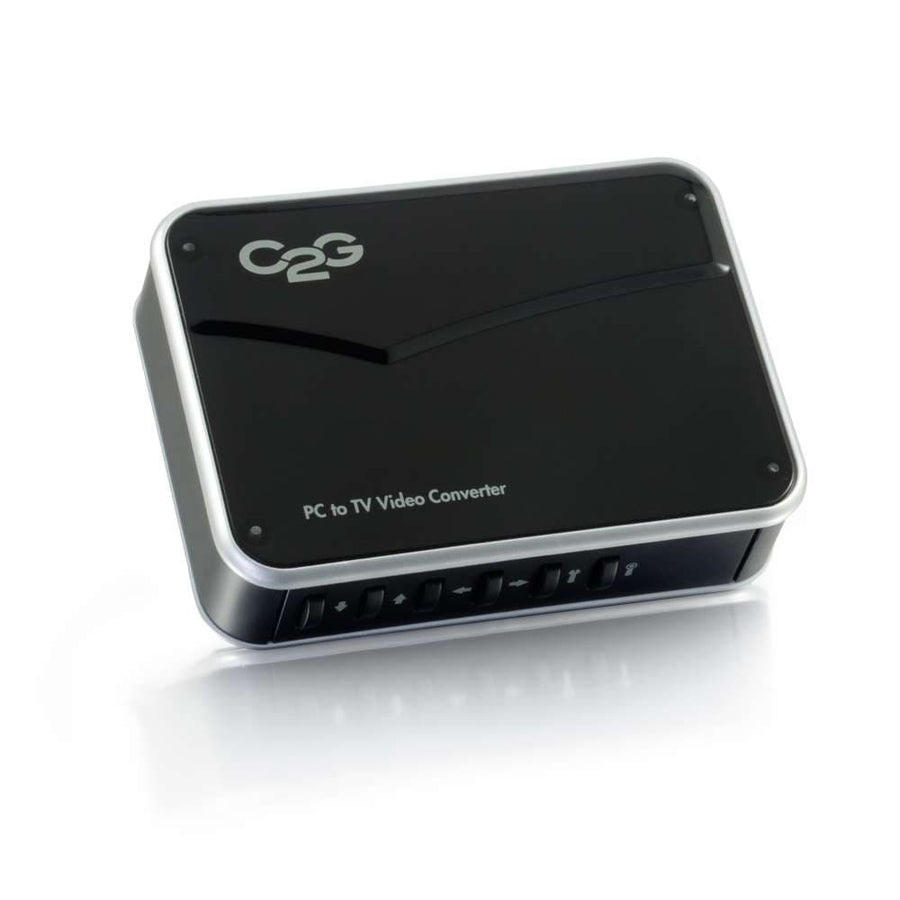

C2G VGA to Composite PC-TV Video Adapter
VGA to Composite and S-Video converter supporting resolutions up to 1024x768 at 85Hz for legacy TV and projector connections
The C2G CG29548 is a video converter designed to bridge the gap between modern computing devices and legacy display technology. By converting a VGA video signal from a computer, Mac, or other VGA-enabled device into either a Composite Video or S-Video signal, this adapter allows you to connect a computer to an older TV or projector for large-screen viewing. The device supports both PAL and NTSC video standards to ensure compatibility with various regional broadcast signals. For optimal presentation of computer content, the converter includes menu options that allow for customization of display adjustment settings. This unit features a 2D flicker filter to provide static image quality. The hardware supports resolutions up to 1024x768 at 85Hz. Because of its small footprint, this adapter is highly portable for travel and fits into tight installation spaces. Power is conveniently drawn from the computer via a USB power adapter, removing the need for a dedicated wall outlet.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.97 in (50 mm) |
| Cable Length | 3.4 in (8.6 cm) |
| Shipping Weight | 1.04 lbs (0.5 kg) |
| Color | Black |
| Connector 1 | (1) 8-pin Mini Din Female |
| Connector 2 | (1) RCA Composite Video Female(1) S-Video Female(1) VGA Female |
| Product Type | Adapter |
| TAA Compliant | No |
All other specifications 7
| UPC | 757120295488 |
| Video Input Support | VGA |
| Video Output Support | Composite |
| Video Resolution | XGA (1024x768) |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10.2 GBPS |
| Warranty | Lifetime |
Resources
Questions about this part
What video outputs are supported by the CG29548?
The CG29548 supports Composite Video and S-Video output via RCA and S-Video female connectors.
Will this adapter work with my Mac or PC?
Yes, this converter is compatible with any operating system and can convert signals from a PC, Mac, or any other VGA-capable device.
Does this device require an external power outlet?
No, the converter includes a USB power adapter so it can draw power directly from your computer.
What is the maximum resolution supported?
The device supports video resolutions up to 1024x768 at 85Hz.
Which technical documents are available for this converter?
You can download the C2G-29548 Datasheet (PDF) or the CG29548 Manual (PDF) for technical details and installation guidance.
