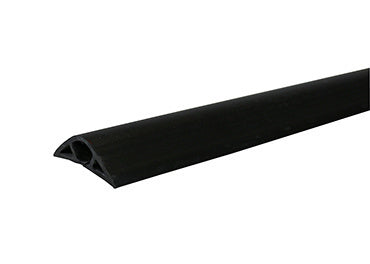

BK1600-10 Nonmetallic Pancake Overfloor Raceway 10 ft in Black
10 ft black nonmetallic overfloor raceway with a low profile that accepts up to 3/4'' cable diameter
The Wiremold BK1600-10 is a 10 ft section of nonmetallic pancake overfloor raceway designed to protect cables while reducing tripping hazards in high-traffic areas. This black raceway features a low-profile construction, measuring 0.94 in (2.4 cm) in height and 3.34 in (8.5 cm) in width. It is engineered to conform to various floor surfaces, making it a flexible solution for hiding a wide assortment of power and data cords. This specific 10 ft length is TAA compliant and can be easily customized on-site; installers can cut the material to the required length using a utility knife or scissors. This model is part of the 1600 Series, which is available in several other lengths and colors to match or contrast with a specific decor.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 0.94 in (2.4 cm) |
| Length | 10 ft (3.1 m) |
| Width | 3.34 in (8.5 cm) |
| Color | Black |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will the BK1600-10 fit my cables?
This raceway accepts a wide assortment of power and data cords with a maximum diameter of 3/4''.
How do I cut the BK1600-10 to a specific length?
You can easily cut the 10 ft section to your required dimension using standard scissors or a utility knife.
What is the profile height of this raceway?
The BK1600-10 has a low profile height of 0.94 in (2.4 cm) to help reduce tripping hazards.
Is this product TAA compliant?
Yes, the BK1600-10 is TAA compliant and is ROHS certified.
What other options are available in the 1600 Series?
The 1600 Series is available in different lengths, including 5 ft, 25 ft, and 25 ft, and comes in colors such as Beige, Brown, Gray, and Yellow.
