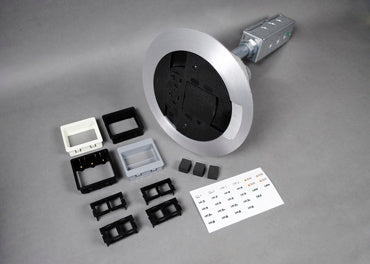

AV3ATCBK AV3 Assembled Poke-Thru Device in Black
Black assembled poke-thru device with prewired 20A duplex receptacle for tile or carpet applications
The AV3ATCBK is a Wiremold AV3 Assembled Poke-Thru Device featuring a black finish. This surface-style device is designed for installation in tile or carpeted floors, provided the floor covering has a minimum thickness of 1/8 inch. It is assembled with a scrub water gasket to protect the installation. This specific unit includes one prewired 20A duplex receptacle that can be configured as either a standard receptacle or an isolated ground. For specialized integrations, this device includes an adapter compatible with Legrand AVIP or Extron Electronics MAAP mini architectural adapter plates, Wiremold Open System adapters, and Ortronics TracJack and Series II mounting adapters. Please note that modular jacks are sold separately. This model requires a 4-inch (102 mm) diameter hole for installation and is not designed for use with bare concrete or terrazzo surfaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 17 in (43.2 cm) |
| Height | 8.25 in (21 cm) |
| Width | 8.25 in (21 cm) |
| Color | Black |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
You'll need these with it
Support Angles, 4 Bay, 27-32 Inch Deep BGR Racks
BANGLE-4$251.10
Raised Floor Support Angles - GANGLE-4-30
GANGLE-4-30

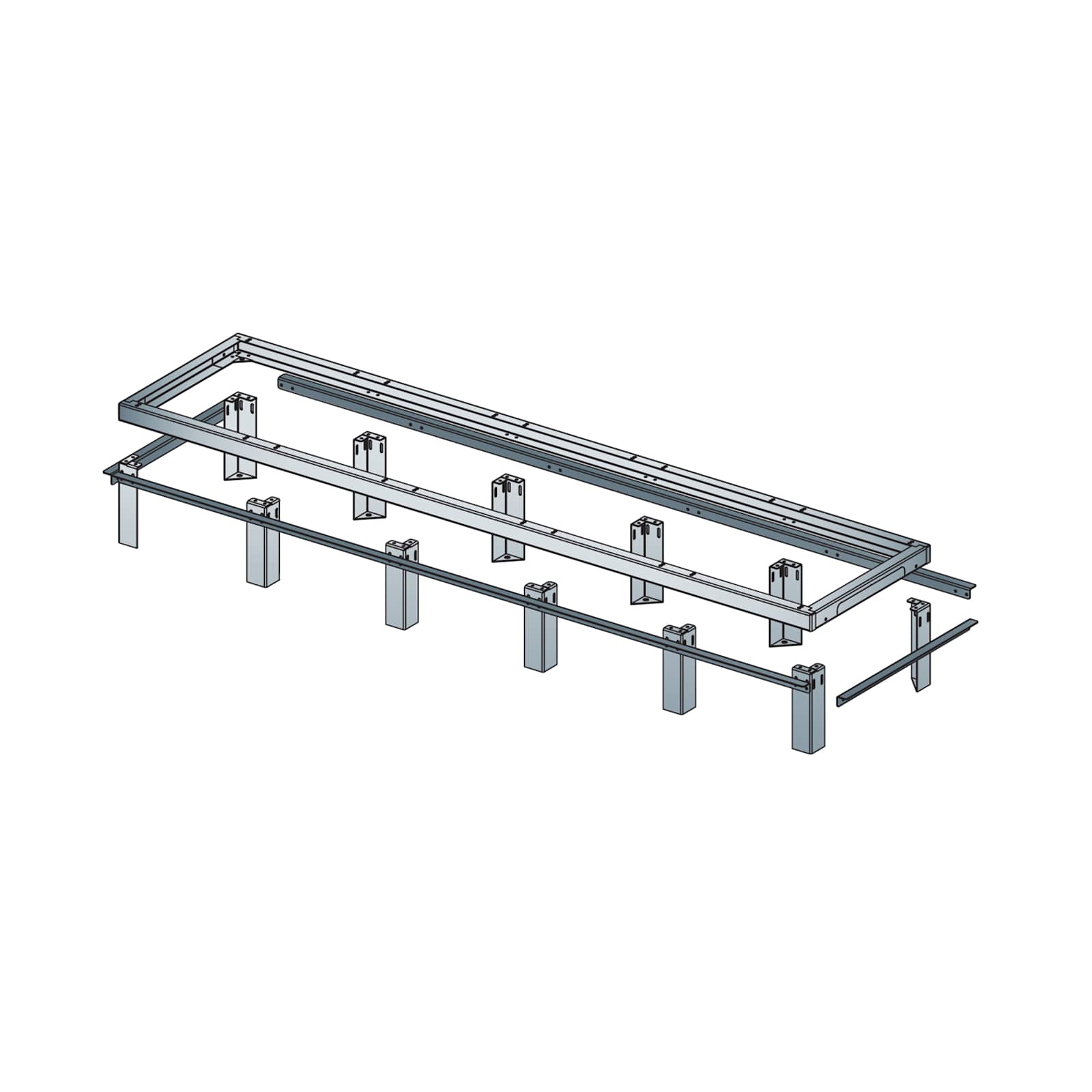

Raised Floor Support Angles - GANGLE-4-42
GANGLE-4-42
Support Angles, 4 Bay, 26-31 Inch Deep Racks
ANGLE-4
Support Angles, 4 Bay, 38 Inch Deep BGR Racks
BANGLE-4-38
Isolation Kit for 31 Inch Deep Riser Bases
MV-ISO-31Discontinued
Raised Floor Support Angles - GANGLE-4-36
GANGLE-4-36Discontinued
Support Angles, 4 Bay, 36 Inch Deep Racks
ANGLE-4-36Discontinued
Support Angles, 4 Bay for WRK Racks
WANGLE-4Discontinued
Questions about this part
What type of floor is this AV3ATCBK suitable for?
This device is designed for use on carpet or tile floors with a minimum thickness of 1/8 inch. It is not intended for use on bare concrete or terrazzo.
Does this poke-thru device include the modular jacks?
No, the modular jacks are sold separately and are not included with the AV3ATCBK unit.
What is the required hole size for the AV3 Series installation?
The AV3 Series Poke-Thru Devices require a 4-inch (102 mm) diameter hole for proper installation.
Can I use this with Extron or Ortronics adapters?
Yes, this unit includes an adapter that accepts Extron Electronics MAAP mini architectural adapter plates and Ortronics TracJack and Series II mounting adapters.
What is the electrical specification of the included receptacle?
The device comes with one prewired 20A duplex receptacle that can be wired as a standard receptacle or an isolated ground.
