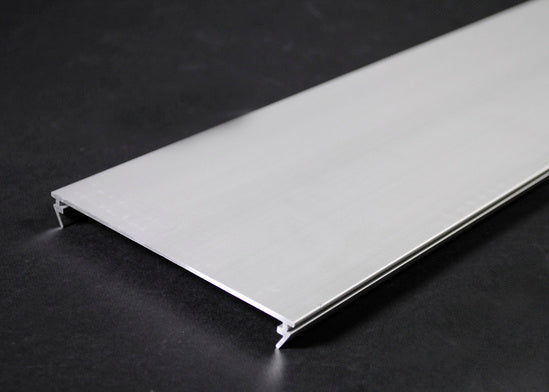

AL5200C-5 Large Multi-Channel Raceway Raceway Cover
Satin anodized aluminum cover for large multi-channel raceways, 5 ft (1.5 m) length, 4.75 in (12.1 cm) height
The AL5200C-5 is a satin anodized finish cover designed for use with the Wiremold AL5200 Series large multi-channel raceway system. Constructed from 6063-T5 extruded aluminum with a .075'' (1.9mm) wall thickness, this component provides a protective and aesthetic closure for high-capacity cable management runs. Each individual length measures 5 ft (1.5 m) in length and features a height of 4.75 in (12.1 cm), a width of 12 in (30.5 cm), and a depth of 0.5 in (1.3 cm). This TAA compliant cover meets RoHS material restrictions, making it suitable for projects with specific environmental or procurement requirements. It is part of a larger series of covers that vary by length to accommodate different installation spans.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Depth | 0.5 in (1.3 cm) |
| Height | 4.75 in (12.1 cm) |
| Length | 5 ft (1.5 m) |
| Width | 12 in (30.5 cm) |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | Silver |
Questions about this part
What is the length of the AL5200C-5 raceway cover?
The AL5200C-5 is a 5 ft (1.5 m) length cover section.
Is the AL5200C-5 TAA compliant?
Yes, this raceway cover is TAA compliant and meets RoHS material restrictions.
What material is used for the AL5200C-5 cover?
This cover is made from 6063-T5 extruded aluminum with a .075'' (1.9mm) wall thickness.
What are the dimensions of this AL5200C-5 section?
Each 5 ft (1.5 m) section has a height of 4.75 in (12.1 cm), a width of 12 in (30.5 cm), and a depth of 0.5 in (1.3 cm).
What is the warranty for the AL5200C-5?
The product carries a 1-Year warranty from installation or a 2-Years warranty from the day of sale.
