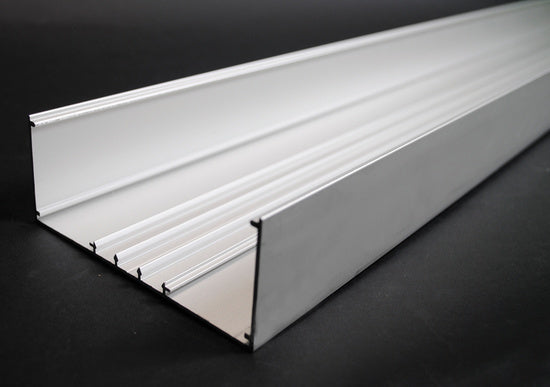

AL5200B-5US Large Multi-Channel Raceway Raceway Base
5 ft (1.5 m) aluminum raceway base for large multi-channel cable management systems
The AL5200B-5US is a 5 ft (1.5 m) length of the Wiremold AL5200 Series large multi-channel raceway base. This component is constructed from 6063-T5 extruded aluminum and features a satin anodized finish. The base is engineered with four internal ribs designed to secure snap-in dividers for organized cable management. This specific model is RoHS compliant and manufactured in the U.S.A. It is intended for use as a primary containment channel within a multi-channel routing system.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Length | 5 ft (1.5 m) |
Questions about this part
How is the AL5200B-5US installed within a cable system?
The base features four internal ribs that allow you to snap-in dividers to separate different cable runs.
Is the AL5200B-5US part of a larger series?
Yes, this is a 5 ft (1.5 m) base within the AL5200 Series large multi-channel raceway system.
What material is used for the AL5200B-5US raceway?
The raceway is made from 6063-T5 extruded aluminum with a .080'' (2.03mm) wall thickness.
What is the minimum order quantity for this part?
The minimum order quantity for the AL5200B-5US is 40 units.
