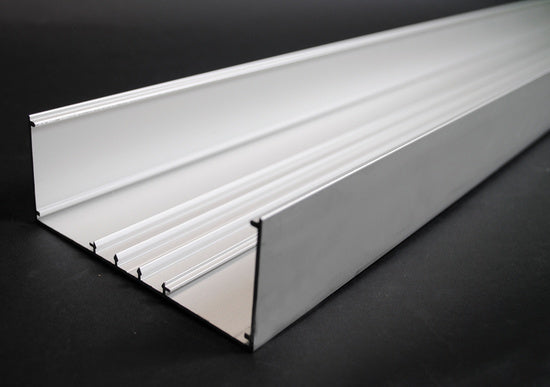

AL5200B-10US Large Multi-Channel Raceway Raceway Base
10 ft (3.1 m) extruded aluminum raceway base featuring a satin anodized finish and four ribs for snap-in dividers
The Wiremold AL5200B-10US is an extruded 6063-T5 aluminum raceway base designed for multi-channel cable management. This 10 ft (3.1 m) section features a .080'' (2.03mm) wall thickness and a satin anodized finish. The base is engineered with four internal ribs specifically to secure snap-in dividers, allowing for organized channel separation. This component is part of the larger AL5200 Series and is manufactured in the U.S.A. to meet RoHS material restrictions.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Length | 10 ft (3.1 m) |
| Shipping Dimensions | 120" x 6" x 4.5" (304.8 x 15.2 x 11.4 cm) |
Questions about this part
How do I separate channels in this raceway?
The base includes four internal ribs that allow you to snap in dividers to create multiple separate cable paths.
What is the material and finish of the AL5200B-10US?
This unit is constructed from 6063-T5 extruded aluminum and features a satin anodized finish.
Is this product RoHS compliant?
Yes, this product meets the material restrictions required by RoHS.
Where is the AL5200B-10US manufactured?
This raceway base is made in the U.S.A.
