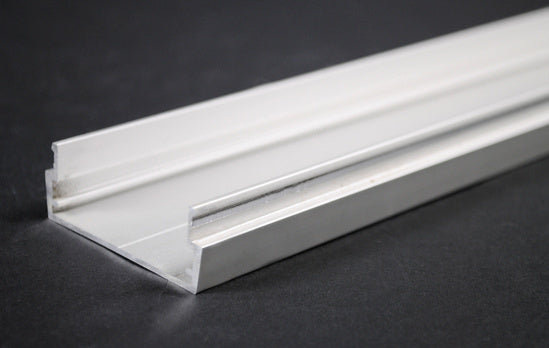

AL2400B-5 Raceway Base
5 ft (1.5 m) length aluminum raceway base, 2" wide with a satin anodized silver finish
The AL2400B-5 is a 5 ft (1.5 m) length component of the AL2400 Raceway Base series. This base is constructed from 6063-T5 extruded aluminum with a .60'' (1.5mm) nominal thickness and features a satin anodized silver finish. It is designed to serve as the foundation for the AL2400 raceway system, providing a 2'' (51mm) wide channel for organized cable management. This specific SKU is part of a series that includes a 10 ft option. This product is TAA compliant and meets RoHS material restrictions. The warranty covers 1-year from installation or 2-years from the day of sale.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Length | 5 ft (1.5 m) |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | Silver |
Questions about this part
What are the dimensions of the AL2400B-5 raceway base?
The base has a 2'' (51mm) width and a .60'' (1.5mm) nominal thickness, provided in 5 ft (1.5 m) lengths.
Is the AL2400B-5 TAA compliant?
Yes, this raceway base is TAA compliant and meets RoHS material restrictions.
What is the warranty for the AL2400B-5?
The product carries a warranty of 1-year from installation or 2-years from the day of sale.
Are there other length options for this raceway base?
Yes, the AL2400 series also includes a 10 ft length option.
What material is the AL2400B-5 made of?
It is manufactured from 6063-T5 extruded aluminum with a satin anodized finish.
