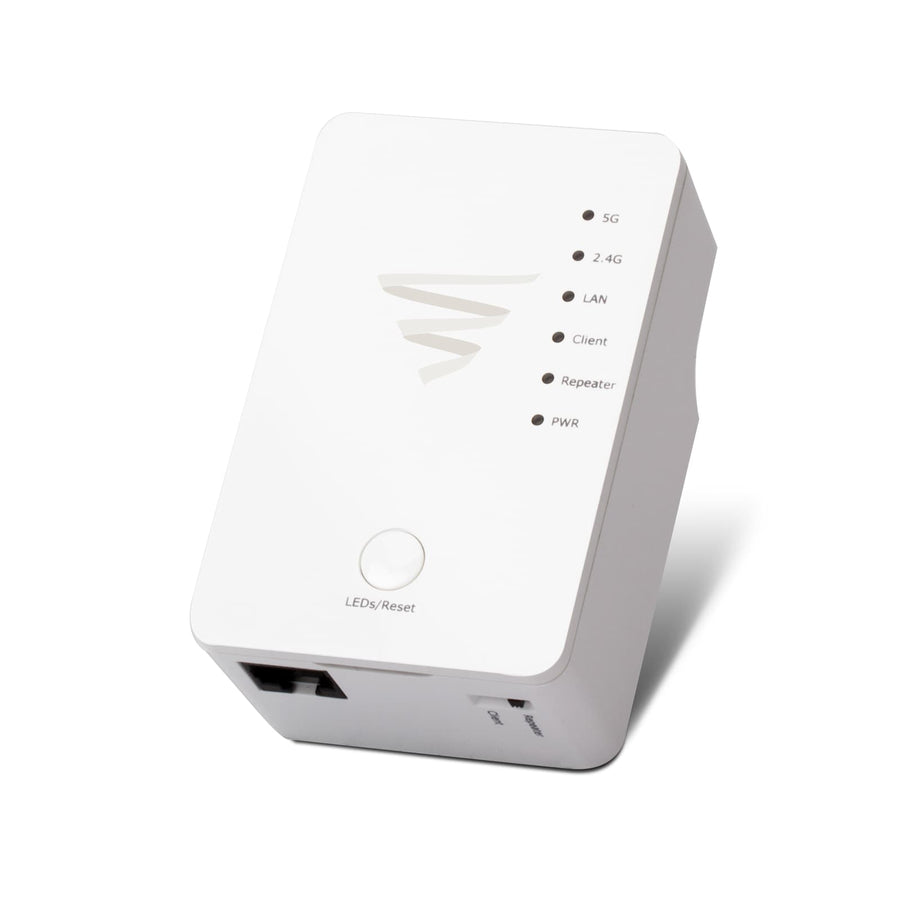

AC1200 WiFi Bridge + Range Extender with US Power Cord
AC1200 WiFi bridge and range extender that plugs directly into US wall outlets for rapid network expansion
The Luxul P40 is an AC1200 WiFi Bridge + Range Extender designed to expand wireless coverage in residential or small office environments. This device plugs directly into a US power outlet, making it a discreet solution for eliminating dead spots in hard-to-reach areas. By utilizing 802.11ac technology, the P40 delivers total data transfers of up to 1200Mbps, with speeds reaching up to 300Mbps on the 2.4 GHz band and 867Mbps on the 5 GHz band. It is compatible with 802.11a/b/g/n/ac devices and supports both Repeater/Range Extender Mode and Bridge/Client Mode. In Bridge/Client Mode, the P40 acts as a wireless link to connect Ethernet-only devices, such as IP cameras or smart TVs, to a WiFi network. The compact unit features status LEDs that can be set to turn off during normal operation to maintain a clean aesthetic.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Height | 1.5 in (3.8 cm) |
| Length | 3_58 in |
| Product Weight | 0.25 lbs (0.1 kg) |
| Shipping Dimensions | 5.67" x 3.78" x 3.03" (144.1 x 96.1 x 77 mm) |
| Shipping Weight | 0.99 lbs (0.5 kg) |
| Width | 2.32 in (5.9 cm) |
| Antenna Type | 2 x 2 |
| Connection Type | Wireless |
All other specifications 8
| Power Cord | US Cord |
| Power Type | AC |
| TAA Compliant | No |
| UPC | 655003921076 |
| VLAN Compliance | 802.1Q |
| Wireless Frequencies | 2.4 GHz5 GHz |
| Wireless Mode | 802.11 a/b/g/n/ac |
| Wireless Security | WPA/WPA2-PSK, WPA/WPA2-AES |
Resources
Questions about this part
Can the Luxul P40 connect my wired IP camera to WiFi?
Yes, using the Bridge/Client Mode, the P40 wirelessly bridges the connection to Ethernet-only devices like IP cameras or smart TVs.
What wireless standards does the P40 support?
The P40 supports 802.11ac standards and is backward compatible with 802.11a, b, g, and n devices.
Does the P40 require special mounting hardware?
No, the P40 is designed to plug directly into standard US electrical outlets for simple, hardware-free installation.
How do I know if the status LEDs are working?
The device features status LEDs to indicate operation, though these can be configured to turn off during use to prevent light pollution.
Is the P40 TAA compliant?
No, the P40 is not listed as TAA compliant in the manufacturer specifications.
