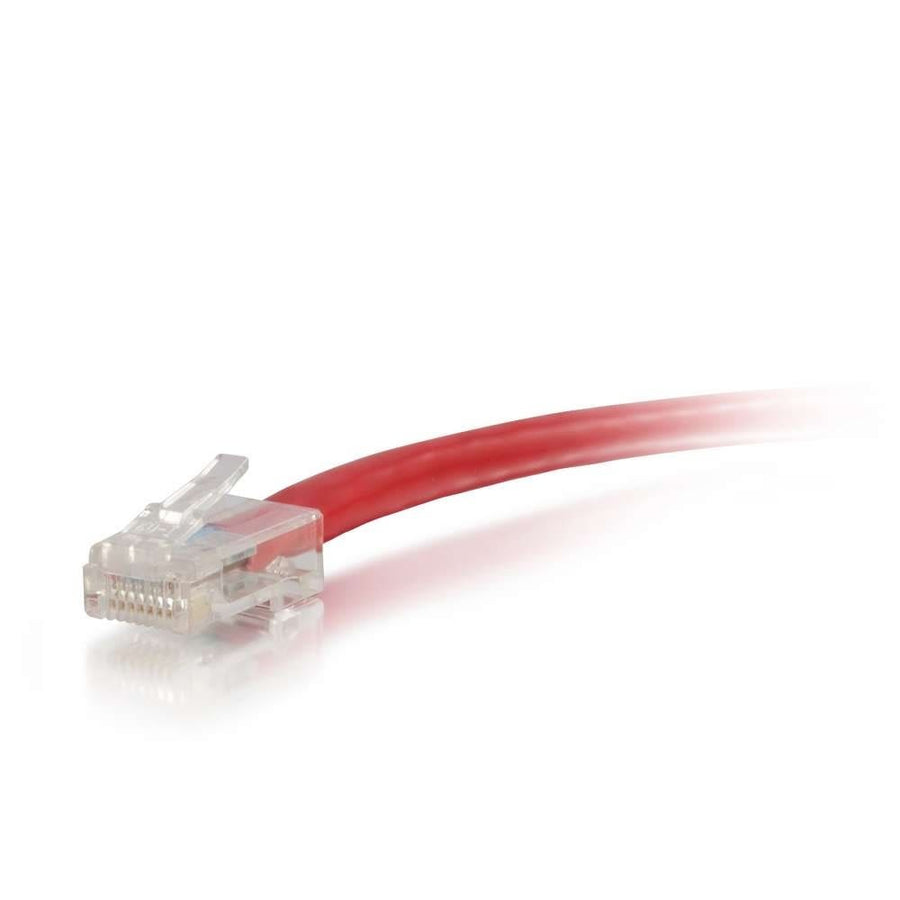

9ft Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Red
9ft Red Cat6 UTP Ethernet patch cable with RJ-45 Male connectors and T568B wiring
The C2G CG04156 is a 9ft (2.7 m) Red Cat6 Unshielded UTP Ethernet Network Patch Cable designed for high-bandwidth voice, data, and video distribution applications. This cable meets all Cat6 TIA/EIA standards, helping to reduce structural return loss (SRL) and impedance. Each individual copper pair is bonded together to maintain twist-spacing through the termination point, which minimizes Near-End Crosstalk (NEXT) levels. This cable features a non-booted connector design with 24 AWG stranded copper conductors. It is built with a PVC jacket rated for temperatures up to 75°C. The wiring follows the T568B scheme for standard connectivity in fast Ethernet and Gigabit computer networks. This red-jacketed cable is part of a larger series available in multiple color options and lengths to support network color-coding requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 9 ft (2.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.24 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 13
| Category Performance Application | Cat6 |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041566 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
Questions about this part
What is the wiring scheme for the C2G CG04156?
The CG04156 uses the T568B wiring scheme with RJ-45 Male connectors on both ends.
Is this cable suitable for Gigabit networks?
Yes, this Cat6 cable is designed for fast Ethernet and Gigabit computer networks requiring high bandwidth for data or video distribution.
What is the jacket material and temperature rating?
The cable features a PVC jacket with a temperature rating of 75°C.
Does this cable support color-coding for network management?
This specific SKU is Red, allowing for easy identification within a color-coded network installation.
What is the conductor material and gauge?
This patch cable uses 24 AWG stranded copper conductors.
