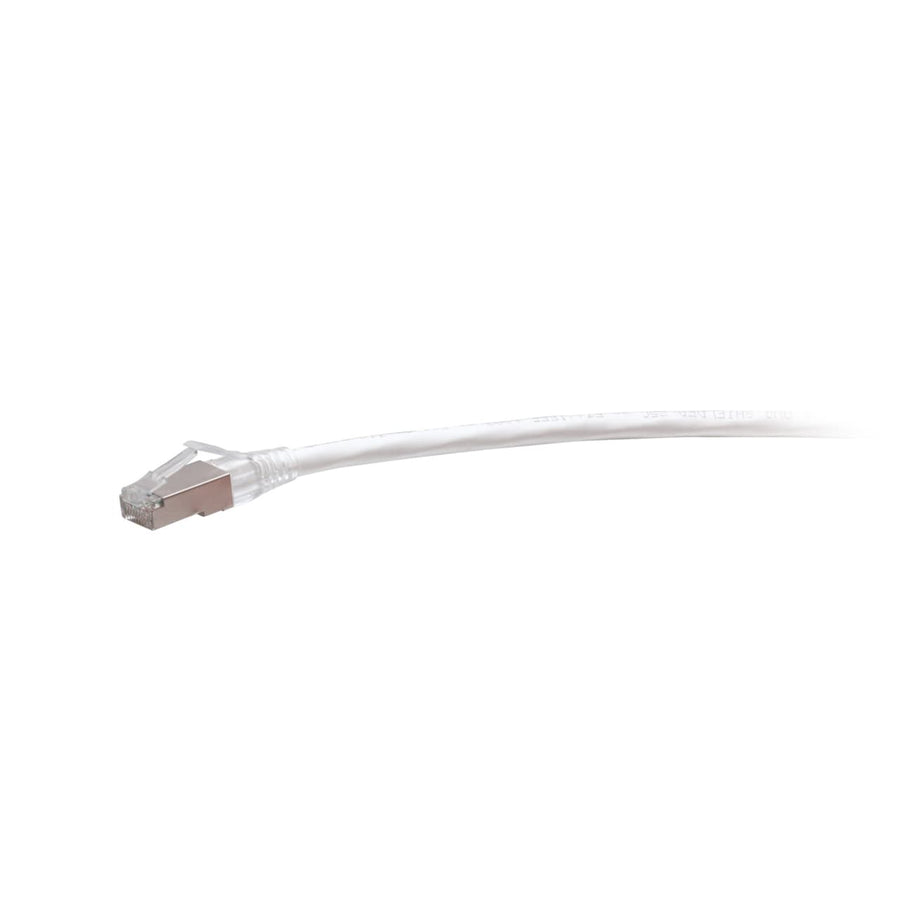

9ft (2.7m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - White
9ft TAA-compliant Cat6a shielded STP network cable, white, with snagless RJ45 connectors for high-speed 10GBase-T connectivity
The C2G43968 is a 9 ft (2.7 m) TAA-compliant Cat6a shielded STP network cable designed to meet the requirements of United States government projects and facilities. This snagless patch cable is constructed with high-quality, made in the USA copper cabling, utilizing aluminum foil shielding to protect high-speed 10 Gigabit Ethernet connections from EMI, RFI, and alien crosstalk. It is engineered for 10GBase-T ports and equipment, including switches, routers, hubs, network adapters, and patch panels, providing bandwidth-intensive data distribution. The cable features 50-micron gold-plated contacts to ensure signal integrity and is built with 26 AWG stranded copper conductors. This white, CMR-rated riser cable utilizes a PVC jacket and follows the T568B wiring scheme to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. For high-insertion cycle applications, the snagless RJ45 connector design protects the clips from being snapped off during installation or maintenance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 9 ft (2.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.21 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439684 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43968 TAA compliant?
Yes, this F-Series Cat6a cable is TAA compliant and approved for use in United States government projects and facilities.
What is the maximum speed and bandwidth support for C2G43968?
This Cat6a cable supports 10GBase-T (10 Gigabit Ethernet) applications and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards.
Does this cable provide shielding against interference?
Yes, the C2G43968 uses an aluminum foil STP (Shielded Twisted Pair) design to counter EMI, RFI, and alien crosstalk.
What is the difference between the snagless and standard RJ45 connectors?
The snagless design on this C2G43968 cable protects the RJ45 clips from being snapped off, making it ideal for environments with high insertion cycles.
What is the operating temperature range for this cable?
This cable is rated for operating temperatures between -4°F and 167°F (-20°C to 75°C).
