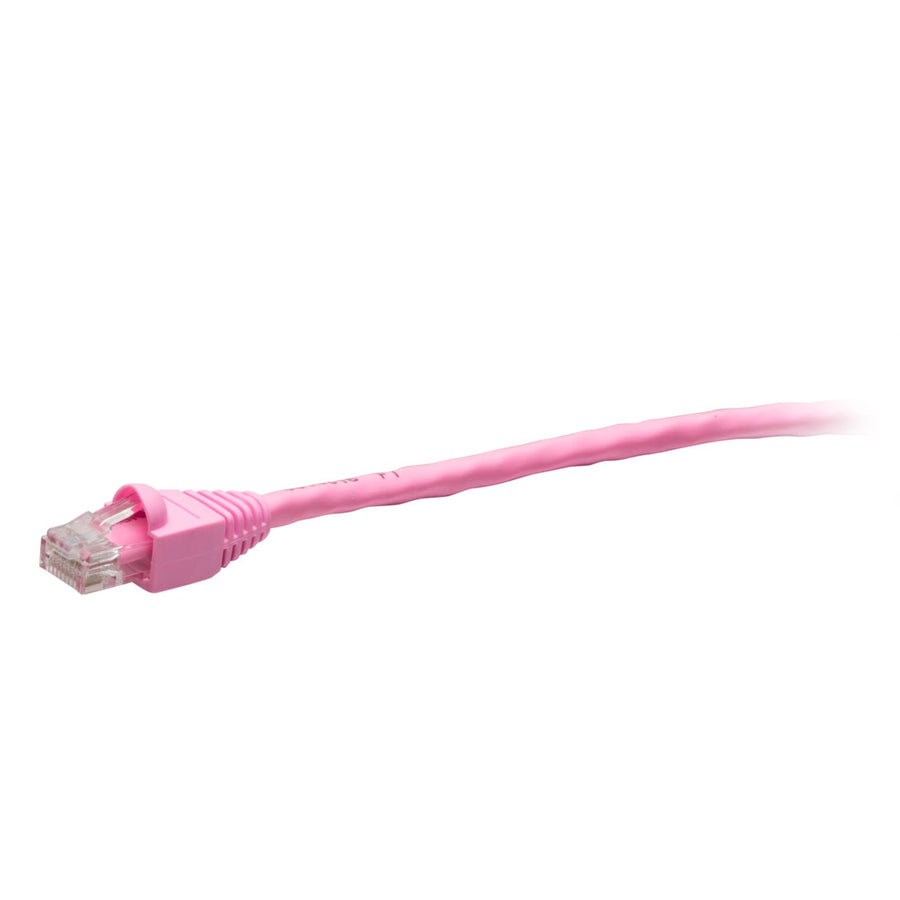

9ft (2.7m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Pink
Pink TAA-compliant Cat6 UTP cable, 9 ft length, featuring snagless RJ45 connectors and CMR rating
The C2G43599 is a 9 ft (2.7 m) TAA-compliant Cat6 Snagless Unshielded (UTP) Network Cable finished in pink. This passive cable is engineered to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, making it suitable for 1000BASE-T (1 Gigabit Ethernet) applications. It is constructed with high-quality, made in the USA stranded copper conductors and 50-micron gold-plated contacts to ensure signal integrity and consistent performance. The snagless RJ45 connector design incorporates a molded boot that protects the clips from snapping during high-frequency insertion cycles and provides additional strain relief. This pink cable is CMR rated with a PVC jacket and is appropriate for riser applications. Because it is TAA compliant, this cable is approved for use in United States government projects and facilities. It features a 0.22 in (5.6 mm) cable diameter and is designed for use with network adapters, hubs, switches, routers, and servers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 9 ft (2.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.2 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435990 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is this C2G43599 cable TAA compliant?
Yes, this is a TAA-compliant F-Series network cable approved for use in United States government projects and facilities.
What is the maximum data rate supported by this Cat6 cable?
This Cat6 UTP cable meets ANSI/TIA-568.2-D standards for supporting 1000BASE-T (1 Gigabit Ethernet) applications.
What type of jacket rating does this cable have?
This cable features a CMR rated PVC jacket, making it suitable for riser applications.
How does the snagless design benefit the installer?
The molded snagless boot protects the RJ45 connector clips from being snapped off, which is beneficial for applications involving frequent insertion cycles.
Will this cable work for high-performance network connections?
Yes, it is constructed with made in the USA stranded copper and features 50-micron gold-plated contacts to improve signal integrity.
