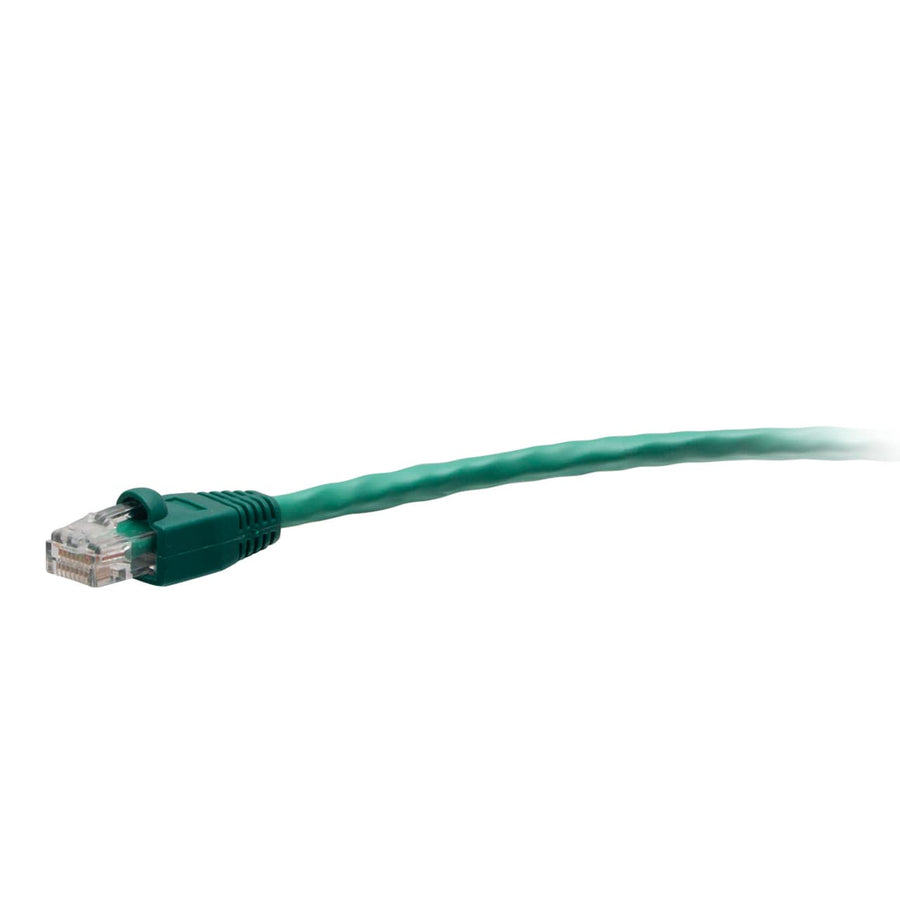

9ft (2.7m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Green
9ft TAA-Compliant Cat6 Snagless UTP cable in Green, featuring stranded copper conductors and 50-micron gold-plated contacts
The C2G43494 is a 9 ft (2.7 m) TAA-Compliant Cat6 Snagless Unshielded (UTP) Network Cable in Green, engineered for high-performance connectivity in government-regulated environments. This passive cable is constructed with high-quality, made in the USA stranded copper conductors, providing a 600 MHz maximum frequency that exceeds standard Cat6 performance. It utilizes the T568B wiring scheme and is designed to support 1000BASE-T (1 Gigabit Ethernet) applications, making it suitable for connections between network adapters, hubs, switches, routers, and servers. The cable features a CMR-rated PVC jacket, making it suitable for riser applications. For increased durability and ease of installation, the snagless RJ-45 connectors include a molded boot that protects the clips from snapping during high-insertion cycle use and provides added strain relief. These connectors are equipped with 50-micron gold-plated contacts to maintain signal integrity. This cable is ANSI/TIA-568.2-D and ISO/IEC 11801-1 compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 9 ft (2.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.2 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434948 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43494 TAA compliant?
Yes, this is a TAA-Compliant F-Series cable, which is approved for use in United States government projects and facilities.
What is the maximum frequency of this Cat6 cable?
This cable features enhanced performance with a 600 MHz maximum frequency due to its high-quality, made in the USA copper construction.
What type of installation environment is this cable rated for?
This cable features a CMR-rated PVC jacket, making it suitable for riser applications.
Will the connector clips break easily during installation?
The snagless RJ-45 design includes a molded boot that protects the clips from being snapped off, which is beneficial for applications with high insertion cycles.
What is the wire gauge and shielding for this SKU?
This is a 24 AWG, Unshielded Twisted Pair (UTP) cable featuring stranded copper conductors.
