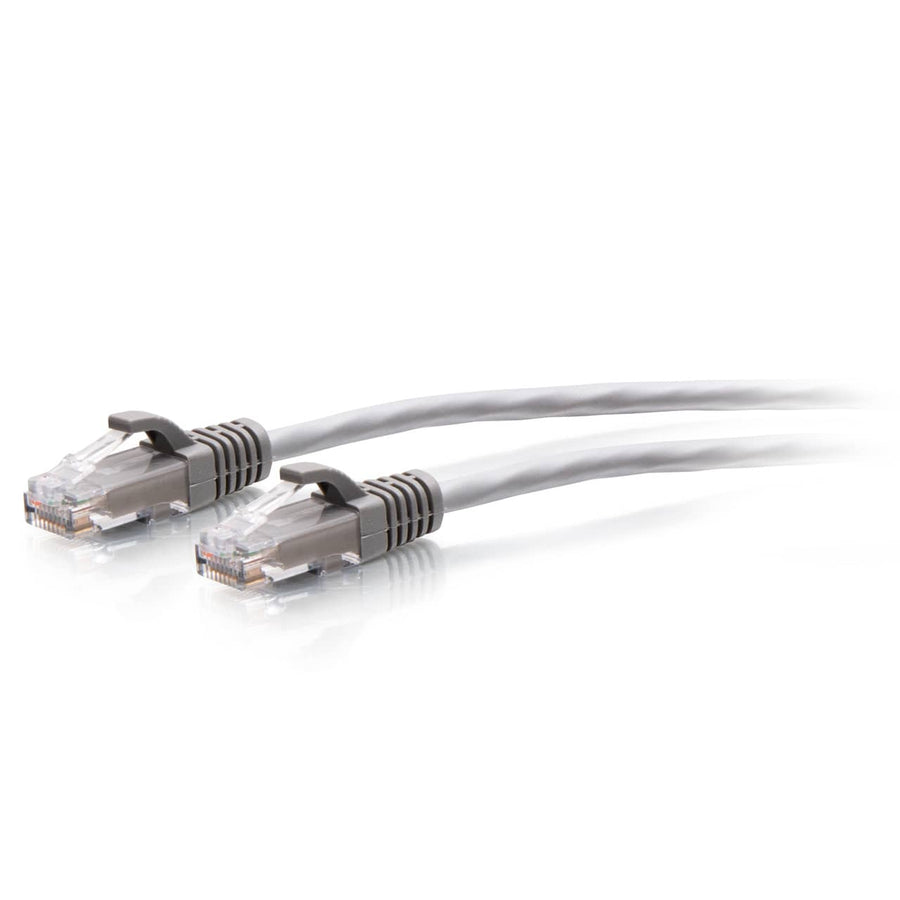

9ft (2.7m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Gray
9ft Cat6a Snagless UTP Slim Patch Cable, 28AWG construction, Gray, 10Gbps data transfer rate
The C2G30119 is a 9ft (2.7m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed for high-density cabling environments such as datacenters or large conference rooms. Featuring 28AWG stranded copper conductors, this slim-profile cable has an outer diameter of 0.19 in (4.8 mm), which facilitates improved airflow and greater flexibility in tight spaces compared to standard Cat6 cables. This cable supports data transfer rates up to 10 Gbps and meets the ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. The gray PVC jacket and snagless boots provide extra strain relief and prevent unwanted snags during installation. Each end features an RJ-45 Male connector with gold-plated contacts and a PVC hood. This Cat6a solution is highly effective for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) applications where bandwidth and space are critical.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 9 ft (2.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.38 lbs (0.2 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301196 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Will this C2G30119 cable work for PoE or VoIP applications?
Yes, this Cat6a cable is designed to support Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) environments.
What is the maximum data transfer rate for the C2G30119?
The C2G30119 supports data transfer rates up to 10 Gbps.
How does the slim diameter of this cable affect installation?
The 0.19 in (4.8 mm) diameter and 28AWG construction allow for increased airflow and greater flexibility in high-density, tight-space installations.
Which standards does this Cat6a patch cable meet?
This cable meets the ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements.
What is the difference between this and other C2G Cat6a cables?
The C2G30119 is part of a series that includes 435 different length and color variations to accommodate specific network configurations.
