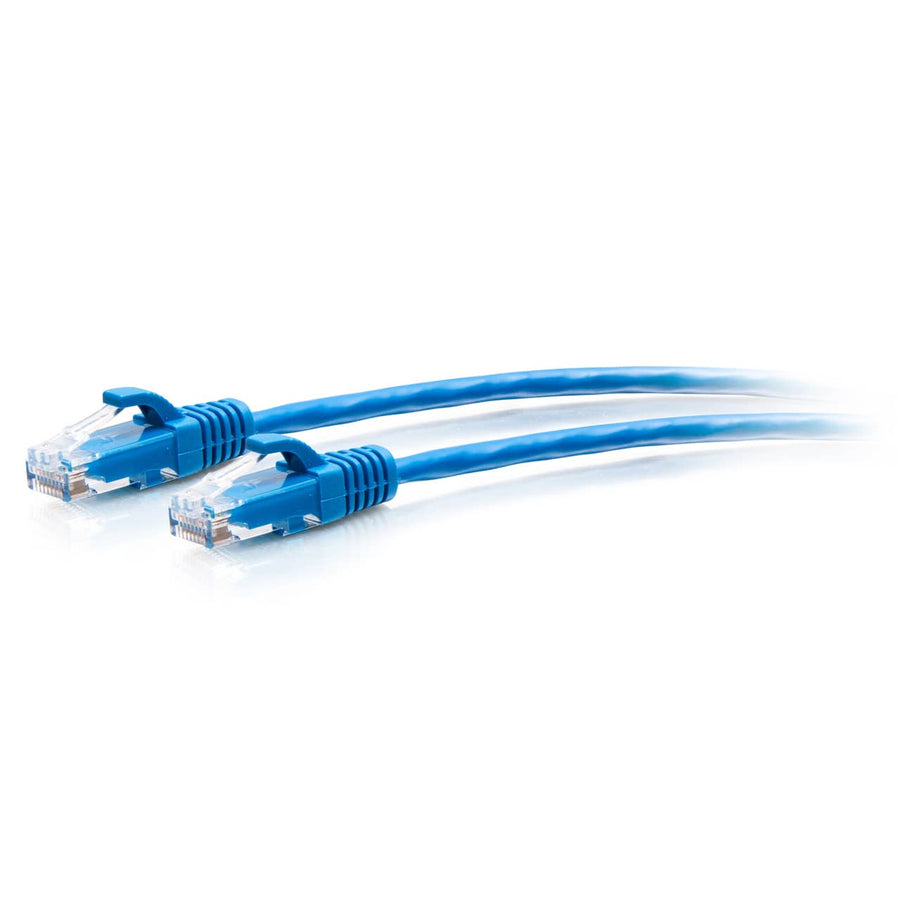

9ft (2.7m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Blue
9ft (2.7m) Cat6a Snagless UTP Slim Ethernet Patch Cable in Blue, featuring 28AWG conductors for high-density environments
The C2G30133 is a 9ft (2.7m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed to facilitate high-density cabling in environments like datacenters or large conference rooms. Using 28AWG stranded copper conductors, this cable features a reduced 0.19 in (4.8 mm) diameter, which increases airflow and provides greater flexibility in tight spaces compared to standard Cat6 cables. This slim profile is particularly useful in high-density patch panels or behind equipment where space is limited. This blue cable supports data transfer rates up to 10 Gbps and is suitable for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) applications. The molded, snagless PVC boot provides strain relief and protects the RJ-45 male connectors during installation. It is built to meet ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements and is NDAA 889 compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 9 ft (2.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.38 lbs (0.2 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301332 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Is the C2G30133 suitable for high-density data center environments?
Yes, the 28AWG slim construction and 0.19 in (4.8 mm) diameter allow for improved airflow and greater flexibility in crowded spaces.
What is the maximum data rate for this Cat6a cable?
This C2G30133 patch cable supports data transfer rates up to 10 Gbps.
Does this cable support PoE and VoIP applications?
Yes, the Cat6a technology used in this cable supports both Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) setups.
Which compliance certifications does the C2G30133 hold?
The cable is NDAA 889 compliant and meets REACH, RoHS, and CE certification standards.
What is the difference between the C2G30133 and standard Cat6 cables?
This Cat6a cable offers double the minimum bandwidth of Cat6 cables and features a thinner 28AWG profile for better flexibility in tight spaces.
