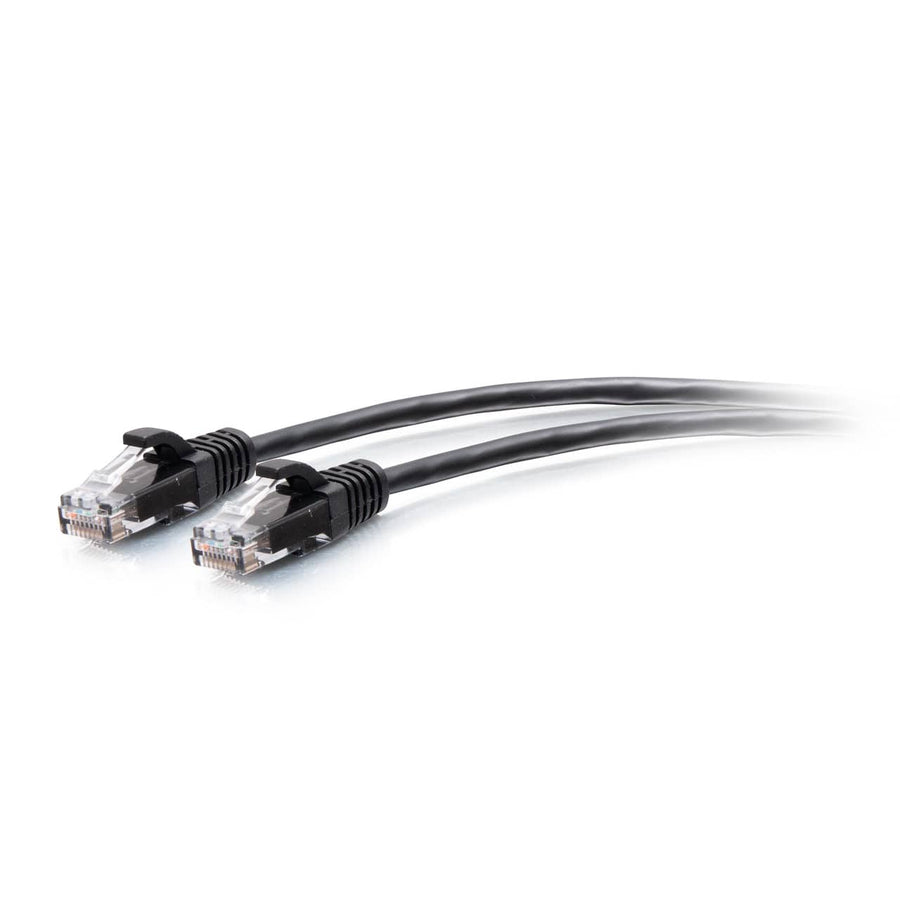

9ft (2.7m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Black
9ft Cat6a slim UTP patch cable with 28AWG conductors and snagless boots for high-density network environments
The C2G30147 is a 9 ft (2.7 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed for high-density cabling applications. This cable is a practical solution for crowded environments like large conference rooms and data centers where space is at a premium. Utilizing 28AWG stranded copper conductors, this slim cable features an outer diameter of 0.19 in (4.8 mm) ± 0.15mm (about 0.01 in), which allows for significantly increased airflow in tight rack spaces compared to standard Cat6 cables. Each connector is an RJ-45 Male with gold-plated contacts and a PVC hood material. The snagless, slim, and booted design prevents accidental snags during installation and provides essential strain relief. This Cat6a cable supports data transfer rates of 10 GBPS and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. It is suitable for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) applications. This black patch cable is NDAA 889 compliant and carries a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 9 ft (2.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.38 lbs (0.2 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301479 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Is the C2G30147 suitable for PoE or VoIP applications?
Yes, the Cat6a technology and 28AWG construction make it suitable for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) environments.
What is the difference between this cable and a standard Cat6 cable?
This is a slim 28AWG Cat6a cable with a 0.19 in (4.8 mm) diameter, which provides more airflow in high-density installs and offers five times more power than Cat5e.
Which documentation is available for submittals?
Installers can refer to the Cat6a Slim Patch Cable Series Datasheet (PDF) or the C2G Ethernet Patch Cable Matrix (PDF) for full technical details.
Does this cable come with snagless boots?
Yes, the C2G30147 features molded, snagless boots that provide extra strain relief and prevent cable snags during installation.
What certifications does this cable hold?
This cable is NDAA 889 compliant and meets the ISO/IEC 11801-1 electrical performance requirements.
