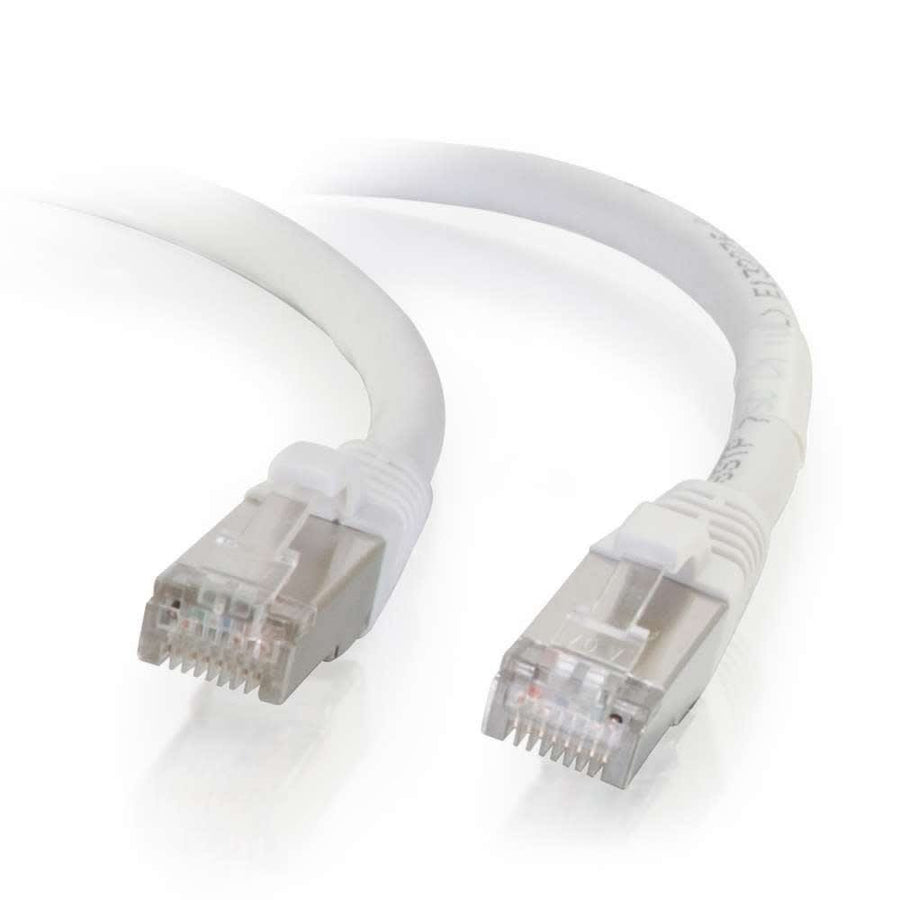

9ft (2.7m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - White
9ft Cat6 shielded STP Ethernet patch cable in white with snagless boots and T568B wiring
The C2G CG00922 is a 9ft (2.7m) Cat6 shielded STP Ethernet network patch cable designed to protect high-speed network environments from electromagnetic interference and noise. This white, stranded SSTP cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, making it suitable for bandwidth-intensive voice, data, and video distribution applications. By bonding individual pairs together, the design helps maintain twist spacing through the termination point to minimize Near-End Crosstalk (NEXT) levels. Each cable features a 26AWG bare copper conductor and is built with a PVC jacket and PVC connector hoods. The snagless, booted RJ-45 male connectors provide strain relief, and individual length labels are included on each cable for easy identification during complex installations. This cable is rated for temperatures up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 9 ft (2.7 m) |
| Shield Type | STP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009221 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Will this CG00922 cable work for high-bandwidth video distribution?
Yes, this Cat6 shielded patch cable is designed for bandwidth-intensive applications and helps reduce structural return loss (SRL) and impedance.
What is the wiring scheme for the C2G CG00922?
This patch cable uses the T568B wiring scheme and features 26AWG bare copper conductors.
Does the CG00922 provide protection against electromagnetic interference?
Yes, the STP (Shielded Twisted Pair) construction is specifically designed to protect high-speed networks from noise and electromagnetic interference.
Is this C2G cable suitable for high-temperature environments?
This cable is rated for temperatures up to 75°C.
What is the diameter of the CG00922 cable?
The cable has a diameter of 0.24 in (6.2 mm).
