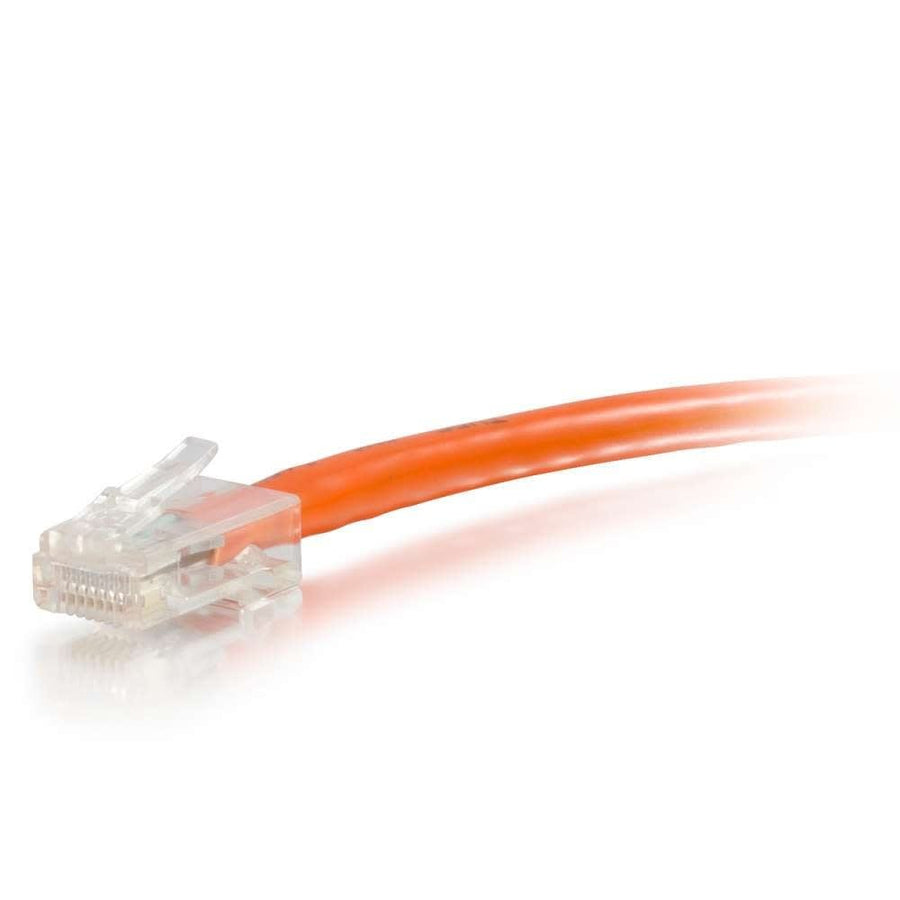

9ft (2.7m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Orange
9 ft (2.7 m) Cat6 UTP patch cable in orange, featuring 24 AWG stranded copper conductors and RJ-45 male connectors
The C2G CG04198 is a 9 ft (2.7 m) Cat6 unshielded UTP Ethernet patch cable designed for high-bandwidth voice, data, and video distribution. This orange cable is built with high-quality stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. It meets all Cat6 TIA/EIA standards, helping to reduce both impedance and structural return loss (SRL). To maintain twist-spacing throughout the line up to the termination point, each individual pair is bonded together. This cable features a non-booted connector type with RJ-45 male ends on both sides and uses a T568B wiring scheme. The cable jacket is made of PVC with a 0.24 in (6 mm) diameter and is rated for standard/non-rated applications. It is rated for temperatures up to 75°C and is compliant with REACH, RoHS, CE, and TSA/TSCA standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 9 ft (2.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.24 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 13
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041986 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
Questions about this part
What is the wiring scheme for the CG04198?
The CG04198 uses the T568B wiring scheme for its RJ-45 male connectors.
Is the C2G CG04198 suitable for high-bandwidth video applications?
Yes, this Cat6 cable is designed for bandwidth-intensive applications including voice, data, and video distribution.
What is the conductor material and gauge of this patch cable?
This cable uses 24 AWG stranded copper conductors.
What is the maximum operating temperature for the CG04198?
This patch cable has a temperature rating of 75°C.
Does this cable include a boot on the connectors?
No, this is a non-booted connector type cable.
