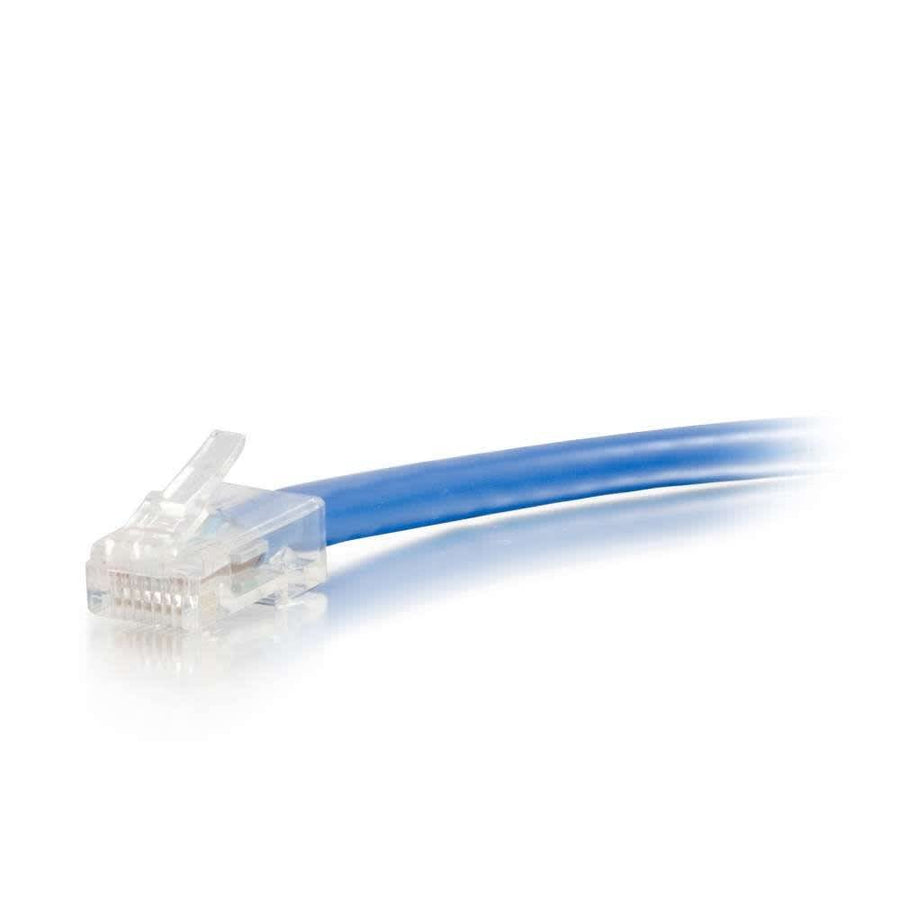

9ft (2.7m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Blue
9ft Blue Cat6 Unshielded UTP Ethernet patch cable with RJ-45 male connectors and T568B wiring
The CG04093 is a 9 ft (2.7 m) blue Cat6 unshielded UTP Ethernet network patch cable designed for bandwidth-intensive applications, including high-speed voice, data, and video distribution. This cable meets all Cat6 TIA/EIA standards, which helps to drastically reduce impedance and structural return loss (SRL). To minimize Near-End Crosstalk (NEXT) levels, the high-quality copper conductors feature a stranded construction, and each individual pair is bonded together to maintain twist-spacing through to the termination point. This specific SKU, CG04093, features a non-booted connector type with RJ-45 male ends on both sides. It utilizes a T568B wiring scheme and is built with a PVC jacket material. The cable has a 0.24 in (6 mm) diameter and is rated for a temperature up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 9 ft (2.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.24 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 13
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120040934 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
Questions about this part
What is the wiring standard for the CG04093?
The CG04093 uses the T568B wiring scheme for both RJ-45 male connectors.
Is this cable shielded or unshielded?
This is an Unshielded (UTP) Cat6 cable, which helps reduce impedance and structural return loss (SRL).
What is the connector type on this patch cable?
This SKU features a non-booted RJ-45 male to RJ-45 male connector configuration.
What is the maximum operating temperature for this cable?
The CG04093 is rated for operation at temperatures up to 75°C.
Does this cable support Gigabit Ethernet?
Yes, it is designed for Gigabit computer networks and bandwidth-intensive video distribution.
